Q.5 See figure shown below for the amplifier circuit with Rs = 1k 2, RB = 5k12, RE=5k12, Re=4k 2, R1 = 4k 2, C = C2= Ce

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Q.5 See figure shown below for the amplifier circuit with Rs = 1k 2, RB = 5k12, RE=5k12, Re=4k 2, R1 = 4k 2, C = C2= Ce

Post by answerhappygod »

Q 5 See Figure Shown Below For The Amplifier Circuit With Rs 1k 2 Rb 5k12 Re 5k12 Re 4k 2 R1 4k 2 C C2 Ce 1
Q 5 See Figure Shown Below For The Amplifier Circuit With Rs 1k 2 Rb 5k12 Re 5k12 Re 4k 2 R1 4k 2 C C2 Ce 1 (46.07 KiB) Viewed 35 times

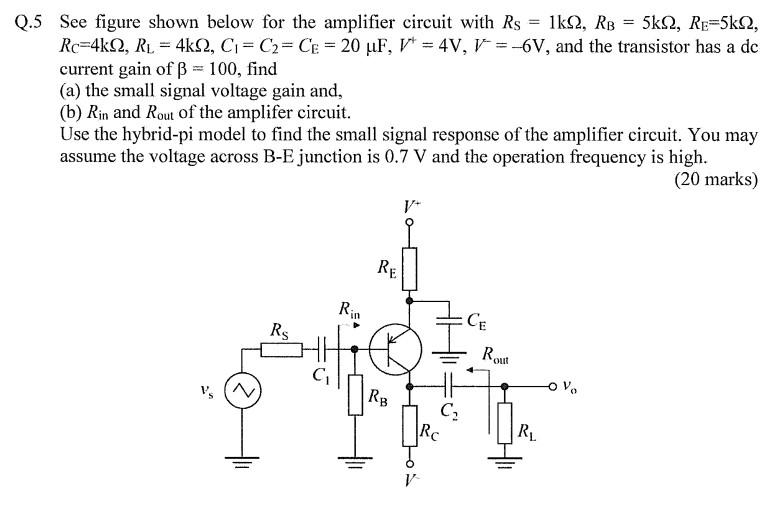

Q.5 See figure shown below for the amplifier circuit with Rs = 1k 2, RB = 5k12, RE=5k12, Re=4k 2, R1 = 4k 2, C = C2= Ce = 20 uF, V* = 4V, V = -6V, and the transistor has a de current gain of B = 100, find (a) the small signal voltage gain and, (b) Rin and Rout of the amplifer circuit. Use the hybrid-pi model to find the small signal response of the amplifier circuit. You may assume the voltage across B-E junction is 0.7 V and the operation frequency is high. (20 marks) RE RO in CE Rg Row C. V. RB C. Rc RL V
