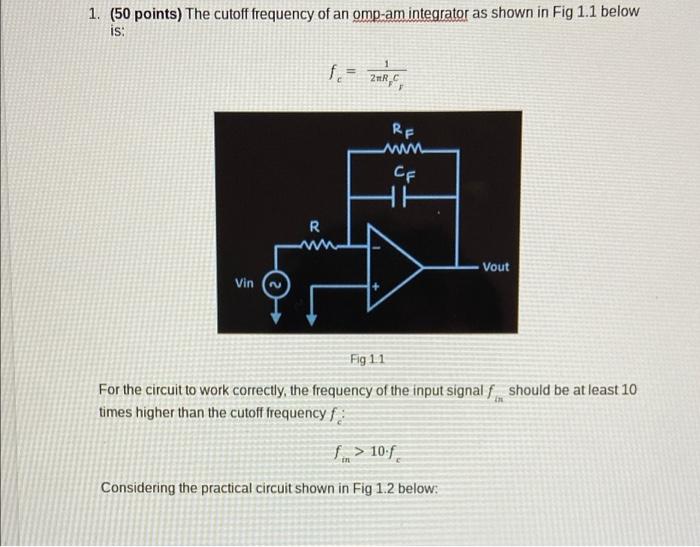

1. (50 points) The cutoff frequency of an omp-am integrator as shown in Fig 1.1 below is: 2nR,, RE w CF HE R w Vout Vino Fig 11 For the circuit to work correctly, the frequency of the input signalf should be at least 10 times higher than the cutoff frequency f; 22 for > 107, Considering the practical circuit shown in Fig 1.2 below:

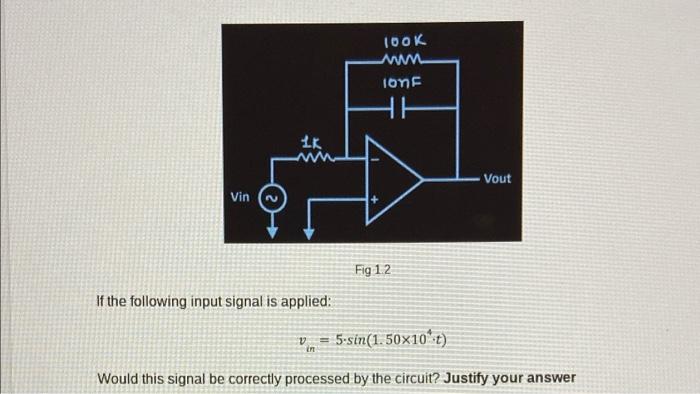

TOOK w Ion HE 1K Vout Vin Fig 12 If the following input signal is applied: Von = 5-sin(1.50x10*1) Would this signal be correctly processed by the circuit? Justify your answer
