A load of 15 MW, with power factor 0.8 lagging, is supplied at a voltage level of 11 kV. The impedance of the line betwe

[answerhappygod]

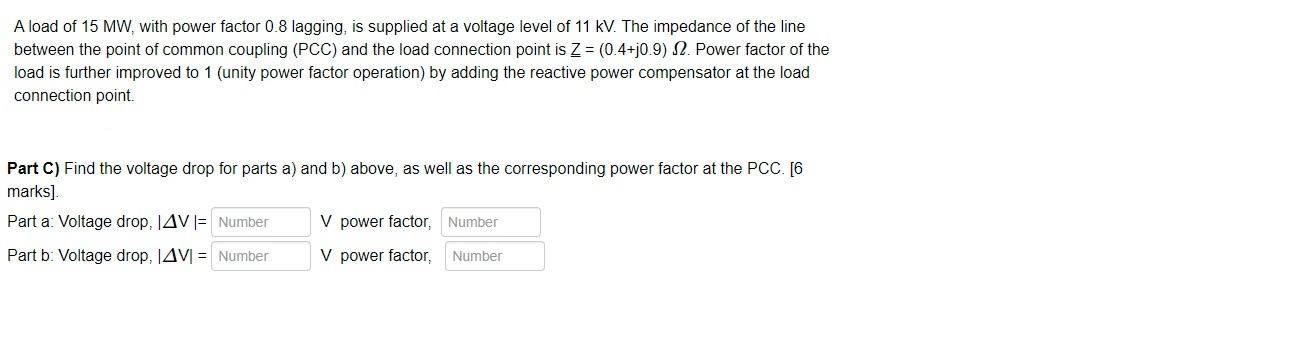

A Load Of 15 Mw With Power Factor 0 8 Lagging Is Supplied At A Voltage Level Of 11 Kv The Impedance Of The Line Betwe 1 (44.52 KiB) Viewed 32 times

A load of 15 MW, with power factor 0.8 lagging, is supplied at a voltage level of 11 kV. The impedance of the line between the point of common coupling (PCC) and the load connection point is Z = (0.4+j0.9) 12. Power factor of the load is further improved to 1 (unity power factor operation) by adding the reactive power compensator at the load connection point. Part C) Find the voltage drop for parts a) and b) above, as well as the corresponding power factor at the PCC. [6 marks) Parta: Voltage drop, IAV = Number V power factor, Number Part b: Voltage drop, IAVI = Number V power factor Number
