A transmission line has length 230 miles and is connected at a 50-Hz, 215 kV network. The positive sequence series imped

Post by answerhappygod »

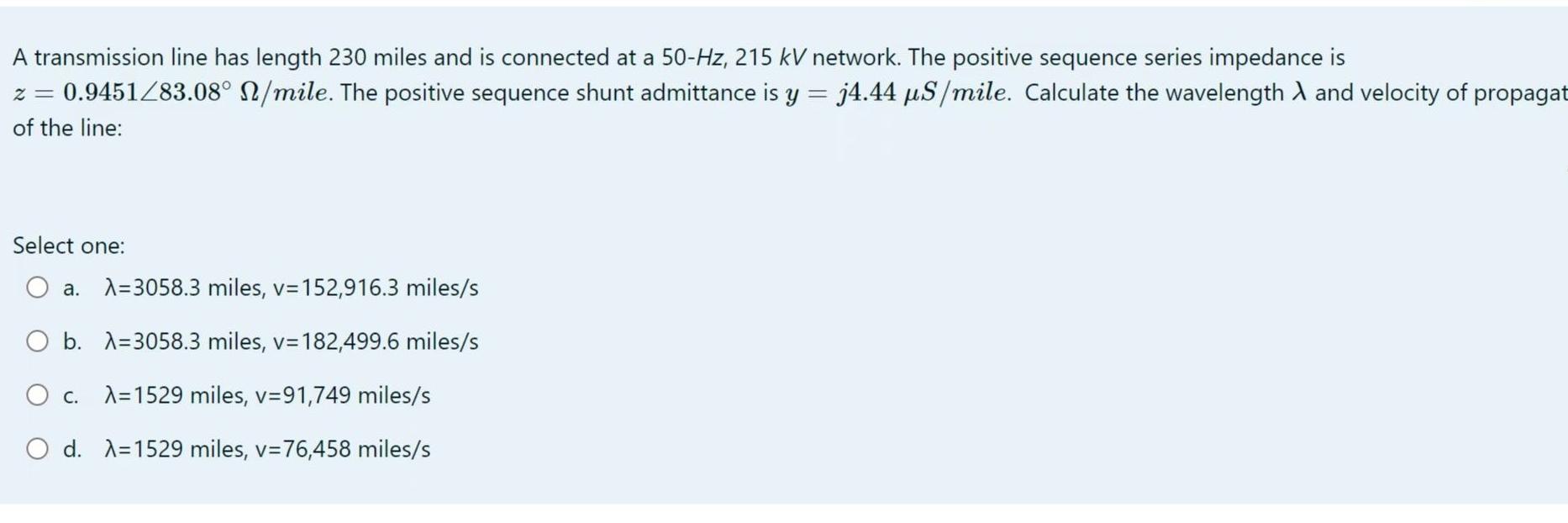

A Transmission Line Has Length 230 Miles And Is Connected At A 50 Hz 215 Kv Network The Positive Sequence Series Imped 1
A Transmission Line Has Length 230 Miles And Is Connected At A 50 Hz 215 Kv Network The Positive Sequence Series Imped 1 (63.17 KiB) Viewed 29 times
A transmission line has length 230 miles and is connected at a 50-Hz, 215 kV network. The positive sequence series impedance is z= 0.9451/83.08° 12/mile. The positive sequence shunt admittance is y j4.44 uS /mile. Calculate the wavelength 1 and velocity of propagat of the line: - Select one: O a. 9=3058.3 miles, v=152,916.3 miles/s O b. 1 =3058.3 miles, v=182,499.6 miles/s O c. 2 = 1529 miles, v=91,749 miles/s O d. 1= 1529 miles, v=76,458 miles/s
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
