A particular operational amplifier has an open-loop gain of 100 dB and poles in its uncompensated frequency response at

Post by answerhappygod »

A Particular Operational Amplifier Has An Open Loop Gain Of 100 Db And Poles In Its Uncompensated Frequency Response At 1
A Particular Operational Amplifier Has An Open Loop Gain Of 100 Db And Poles In Its Uncompensated Frequency Response At 1 (14 KiB) Viewed 55 times

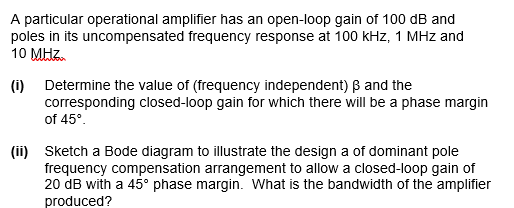

A particular operational amplifier has an open-loop gain of 100 dB and poles in its uncompensated frequency response at 100 kHz, 1 MHz and 10 MHZ (1) Determine the value of (frequency independent) B and the corresponding closed-loop gain for which there will be a phase margin of 45° (ii) Sketch a Bode diagram to illustrate the design a of dominant pole frequency compensation arrangement to allow a closed-loop gain of 20 dB with a 45° phase margin. What is the bandwidth of the amplifier produced?
