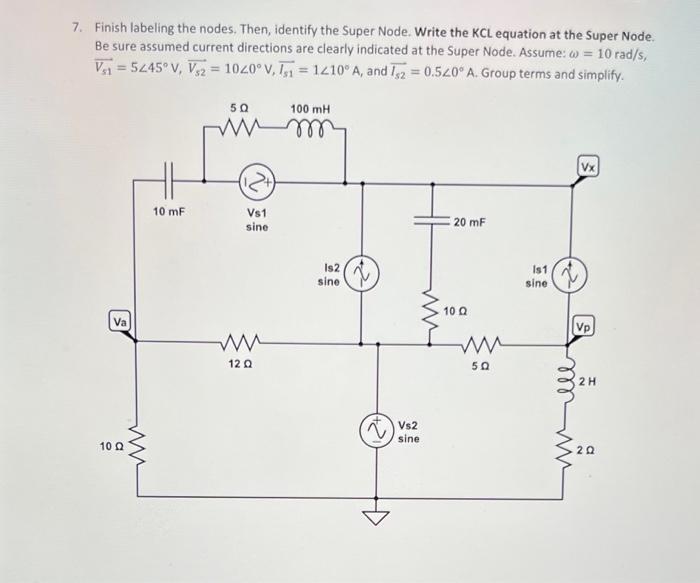

7. Finish labeling the nodes. Then, identify the Super Node. Write the KCL equation at the Super Node. Be sure assumed current directions are clearly indicated at the Super Node. Assume: ) = 10 rad/s, Vi = 5245° V, 1,2 = 1020° V, 1,1 = 1210" A, and Is2 = 0.520° A. Group terms and simplify. 50 100 mH m Vx HA 24 10 mF Vs1 20 mF sine Is2 sine Is 1 sine 10 Va Vp 120 50 ell 2 H 라 Vs2 sine 10 20
