A 320-km 500 kV, 50 Hz lossless line has a positive-sequence series reactance of x = 30.34 12/km and a positive-sequence

Post by answerhappygod »

A 320 Km 500 Kv 50 Hz Lossless Line Has A Positive Sequence Series Reactance Of X 30 34 12 Km And A Positive Sequence 1
A 320 Km 500 Kv 50 Hz Lossless Line Has A Positive Sequence Series Reactance Of X 30 34 12 Km And A Positive Sequence 1 (68.85 KiB) Viewed 28 times

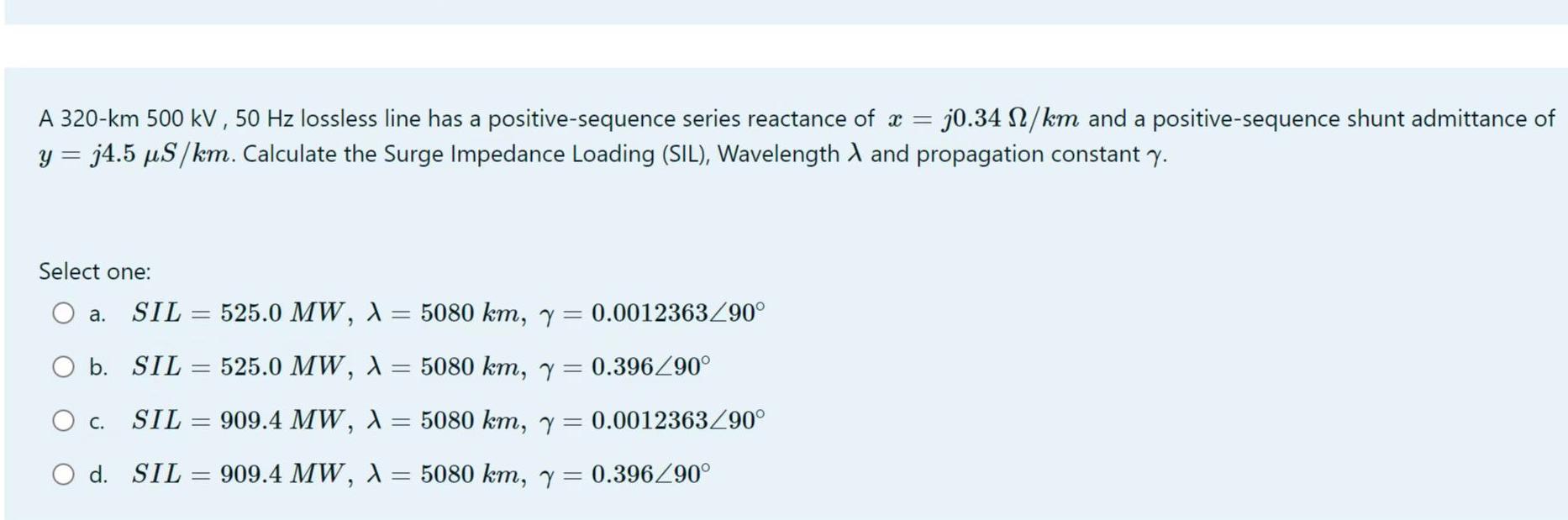

A 320-km 500 kV, 50 Hz lossless line has a positive-sequence series reactance of x = 30.34 12/km and a positive-sequence shunt admittance of y = 34.5 u S/km. Calculate the Surge Impedance Loading (SIL), Wavelength and propagation constant y. Select one: O a. SIL = 525.0 MW, 1 = 5080 km, y= 0.0012363290° O b. SIL = 525.0 MW, 1 = 5080 km, y = 0.396 90° = O c. SIL = 909.4 MW, 1 = 5080 km, y= 0.0012363290° = = O d. SIL = 909.4 MW, 1= 5080 km, y= 0.396Z90° = =
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
