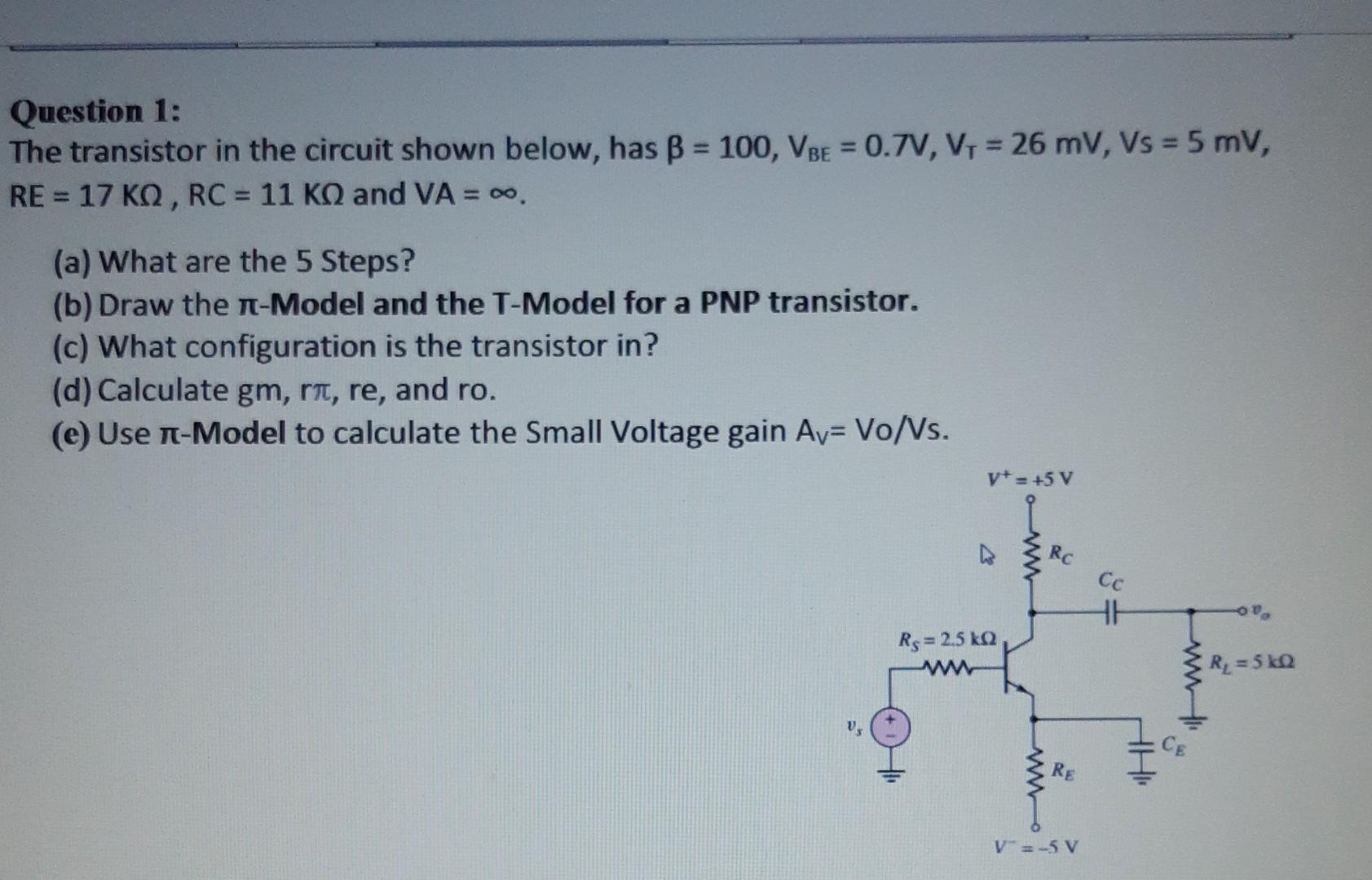

Question 1: The transistor in the circuit shown below, has B = 100, VBE = 0.7V, V, = 26 mV, Vs = 5 mV, RE = 17 KN , RC =

[answerhappygod]

Question 1 The Transistor In The Circuit Shown Below Has B 100 Vbe 0 7v V 26 Mv Vs 5 Mv Re 17 Kn Rc 1 (154.46 KiB) Viewed 42 times

Question 1: The transistor in the circuit shown below, has B = 100, VBE = 0.7V, V, = 26 mV, Vs = 5 mV, RE = 17 KN , RC = 11 KQ and VA = 0. (a) What are the 5 Steps? (b) Draw the T-Model and the T-Model for a PNP transistor. (c) What configuration is the transistor in? (d) Calculate gm, rt, re, and ro. (e) Use T-Model to calculate the Small Voltage gain Av= Vo/Vs. y+ = +5 V Rc CC HE Rs = 2.5 k 2 W RL=512 RE 0 W V-5V
