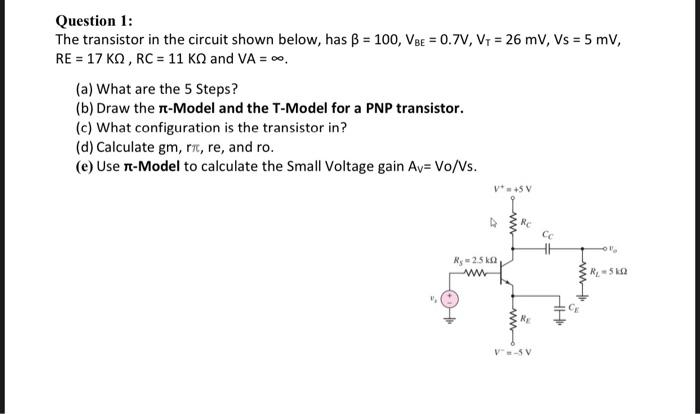

Question 1: The transistor in the circuit shown below, has B = 100, VBE = 0.7V, V1 = 26 mV, Vs = 5 mv, RE = 17 KN , RC =

[answerhappygod]

Question 1 The Transistor In The Circuit Shown Below Has B 100 Vbe 0 7v V1 26 Mv Vs 5 Mv Re 17 Kn Rc 1 (26.6 KiB) Viewed 41 times

Question 1: The transistor in the circuit shown below, has B = 100, VBE = 0.7V, V1 = 26 mV, Vs = 5 mv, RE = 17 KN , RC = 11 KN and VA =-. (a) What are the 5 Steps? (b) Draw the T-Model and the T-Model for a PNP transistor. (c) What configuration is the transistor in? (d) Calculate gm, r, re, and ro. (e) Use T-Model to calculate the Small Voltage gain Av=Vo/Vs. V +5V i Re Cc Rs 25kg ww w R510 } V-5V
