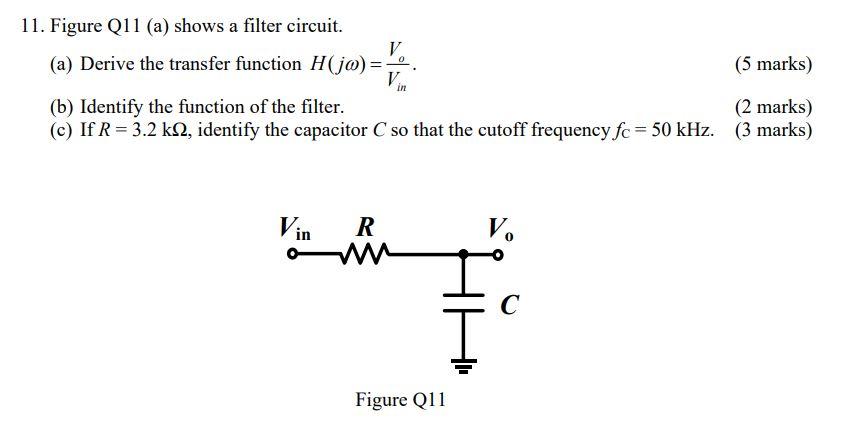

(5 marks) 11. Figure Q11 (a) shows a filter circuit. V. (a) Derive the transfer function H(jo)= V (b) Identify the function of the filter. (c) If R = 3.2 k22, identify the capacitor C so that the cutoff frequency fc = 50 kHz. in (2 marks) (3 marks) Vin R V. 主。 Figure Q11
