12.9 Determine the maximum load that can be allowed on the 450 mm diameter pile shown in Figure P12.9, with a factor of

[answerhappygod]

12 9 Determine The Maximum Load That Can Be Allowed On The 450 Mm Diameter Pile Shown In Figure P12 9 With A Factor Of 1 (118.36 KiB) Viewed 20 times

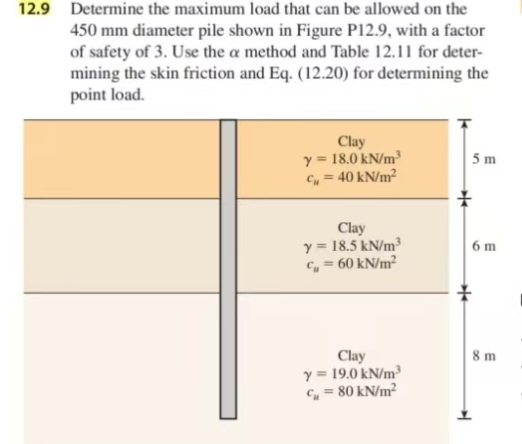

12.9 Determine the maximum load that can be allowed on the 450 mm diameter pile shown in Figure P12.9, with a factor of safety of 3. Use the a method and Table 12.11 for deter- mining the skin friction and Eq. (12.20) for determining the point load. Clay 5 m y = 18.0 kNm Cu = 40 kN/m2 1 Clay y = 18.5 kN/m 4,= 60 kN/m2 6 m 1 8 m Clay y = 19.0 kN/m C = 80 kN/m2
