The Scotch-yoke mechanism converts rotational motion of the disk to oscillatory translation of the shaft. Using the valu

Post by answerhappygod »

The Scotch Yoke Mechanism Converts Rotational Motion Of The Disk To Oscillatory Translation Of The Shaft Using The Valu 1
The Scotch Yoke Mechanism Converts Rotational Motion Of The Disk To Oscillatory Translation Of The Shaft Using The Valu 1 (94.67 KiB) Viewed 29 times

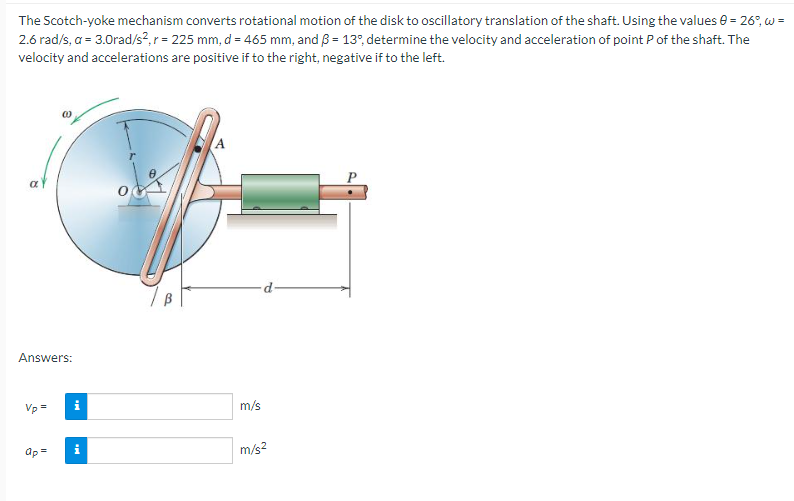

The Scotch-yoke mechanism converts rotational motion of the disk to oscillatory translation of the shaft. Using the values 8 = 26,w= 2.6 rad/s, a = 3.Orad/s?, r= 225 mm, d = 465 mm, and B = 13°, determine the velocity and acceleration of point P of the shaft. The velocity and accelerations are positive if to the right, negative if to the left. ay d 7B Answers: Vp = i m/s apa m/s2
