Problem 2 (4 points): Consider the hydraulic system shown in Figure 2. A very large reservoir delivers water (Density of

[answerhappygod]

Problem 2 4 Points Consider The Hydraulic System Shown In Figure 2 A Very Large Reservoir Delivers Water Density Of 1 (62.68 KiB) Viewed 20 times

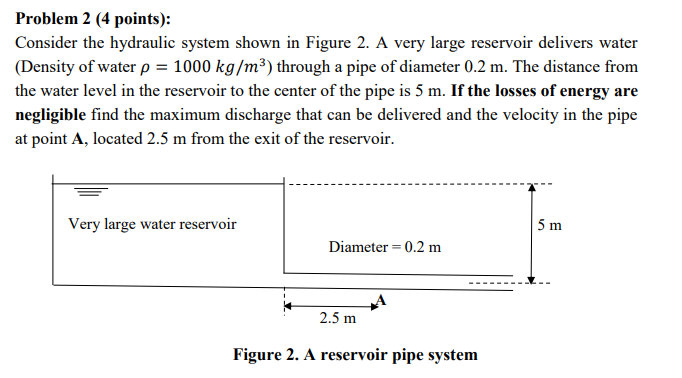

Problem 2 (4 points): Consider the hydraulic system shown in Figure 2. A very large reservoir delivers water (Density of water p = 1000 kg/m³) through a pipe of diameter 0.2 m. The distance from the water level in the reservoir to the center of the pipe is 5 m. If the losses of energy are negligible find the maximum discharge that can be delivered and the velocity in the pipe at point A, located 2.5 m from the exit of the reservoir. 5m Very large water reservoir Diameter = 0.2 m 2.5 m Figure 2. A reservoir pipe system
