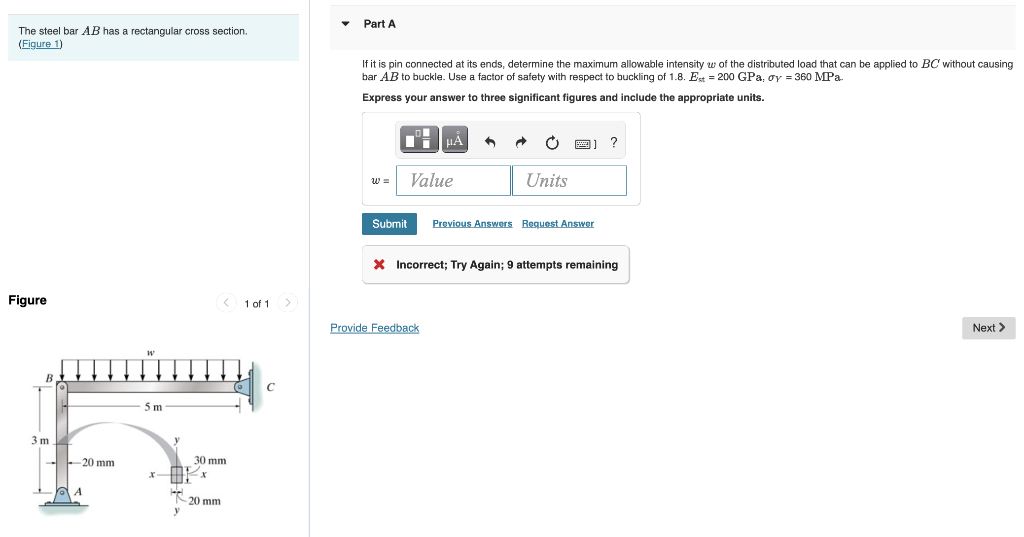

The steel bar AB has a rectangular cross section. (Figure 1) Figure 3 m -20 mm A 5 m WH < 1 of 1 > C 30 mm Ex 20 mm Part

[answerhappygod]

The Steel Bar Ab Has A Rectangular Cross Section Figure 1 Figure 3 M 20 Mm A 5 M Wh 1 Of 1 C 30 Mm Ex 20 Mm Part 1 (72.35 KiB) Viewed 29 times

The steel bar AB has a rectangular cross section. (Figure 1) Figure 3 m -20 mm A 5 m WH < 1 of 1 > C 30 mm Ex 20 mm Part A If it is pin connected at its ends, determine the maximum allowable intensity w of the distributed load that can be applied to BC without causing bar AB to buckle. Use a factor of safety with respect to buckling of 1.8. Est = 200 GPa, oy = 360 MPa. Express your answer to three significant figures and include the appropriate units. μA ^ C 2) ? Value Next > Units Submit Previous Answers Request Answer * Incorrect; Try Again; 9 attempts remaining Provide Feedback
