6. (30 points) The simple beam AB with a T-shape cross section is loaded as shown. (a) Use the graphical method to draw

[answerhappygod]

6 30 Points The Simple Beam Ab With A T Shape Cross Section Is Loaded As Shown A Use The Graphical Method To Draw 1 (69.76 KiB) Viewed 27 times

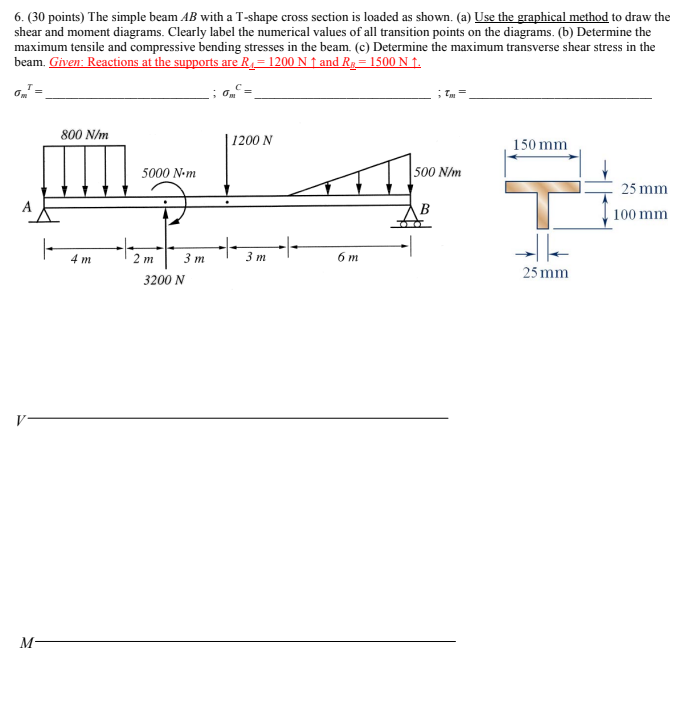

6. (30 points) The simple beam AB with a T-shape cross section is loaded as shown. (a) Use the graphical method to draw the shear and moment diagrams. Clearly label the numerical values of all transition points on the diagrams. (b) Determine the maximum tensile and compressive bending stresses in the beam. (c) Determine the maximum transverse shear stress in the beam. Given: Reactions at the supports are R₁ = 1200 N ↑ and Rg = 1500 N ↑. 6² = ;tm 800 N/m 1200 N 150 mm 5000 N.m 500 N/m 25 mm B 100 mm -//- 3 m A |-- M- 4 m 2 m 3m 3200 N 6 m 25 mm
