5. (15 points) The bending moment M = 5 kN-m is acting on the beam that has a T-shape cross section shown. The centroid

[answerhappygod]

5 15 Points The Bending Moment M 5 Kn M Is Acting On The Beam That Has A T Shape Cross Section Shown The Centroid 1 (26.99 KiB) Viewed 15 times

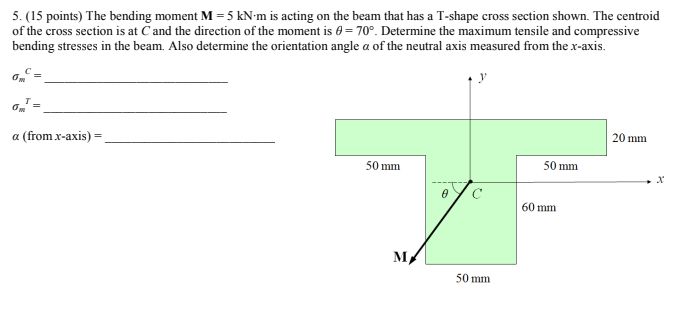

5. (15 points) The bending moment M = 5 kN-m is acting on the beam that has a T-shape cross section shown. The centroid of the cross section is at C and the direction of the moment is = 70°. Determine the maximum tensile and compressive bending stresses in the beam. Also determine the orientation angle a of the neutral axis measured from the x-axis. om om 20 mm a (from x-axis) = 50 mm 50 mm M 0 50 mm 60 mm X
