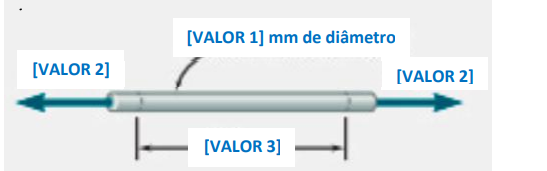

In a standard tensile test, a 16mm diameter steel bar is
subjected to a tensile force of P = 50KN. Knowing that v = 0.3 and
E = 200 GPa, determine (a) the elongation of the rod at a reference
length of 170 mm and (b) the change in diameter of the rod.
bar
In A Standard Tensile Test A 16mm Diameter Steel Bar Is Subjected To A Tensile Force Of P 50kn Knowing That V 0 3 1 (29.73 KiB) Viewed 36 times
value 1 =16mm
value 2= 50KN
value 3=170mm
[VALOR 1) mm de diâmetro [VALOR 2] [VALOR 2] [VALOR 3]
