Question 7 Tabulate PC, PT, deflection angles, and incremental chords to lay out the circular curves for Highway curve w

[answerhappygod]

Question 7 Tabulate Pc Pt Deflection Angles And Incremental Chords To Lay Out The Circular Curves For Highway Curve W 1 (50.17 KiB) Viewed 32 times

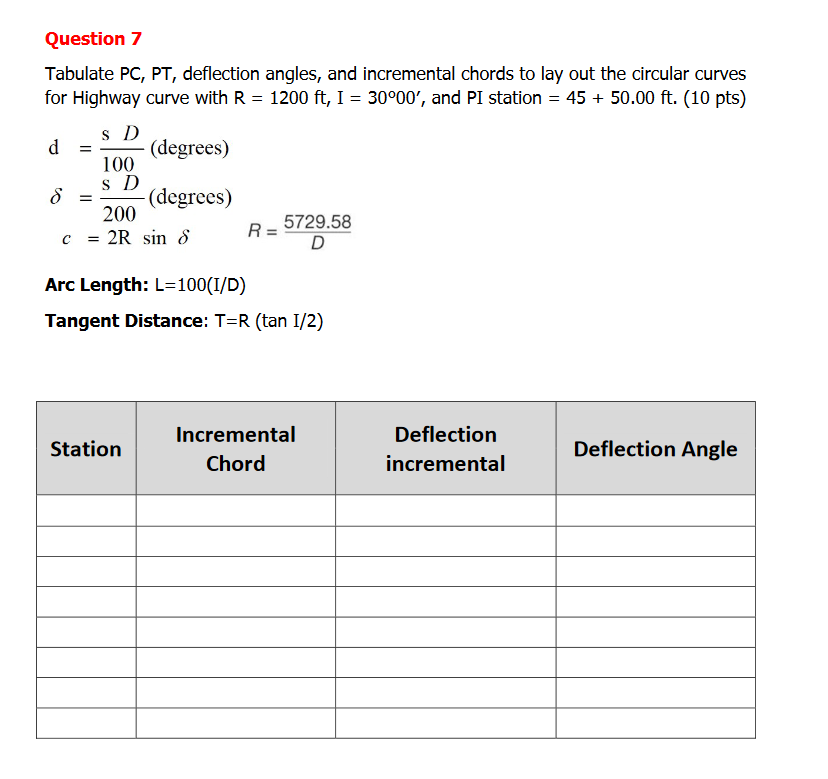

Question 7 Tabulate PC, PT, deflection angles, and incremental chords to lay out the circular curves for Highway curve with R = 1200 ft, I = 30°00', and PI station = 45 + 50.00 ft. (10 pts) SD d (degrees) 100 (degrees) 200 R= 5729.58 c = 2R sin 8 D = SD 8 = Arc Length: L=100(I/D) Tangent Distance: T=R (tan 1/2) Station Incremental Chord Deflection incremental Deflection Angle
