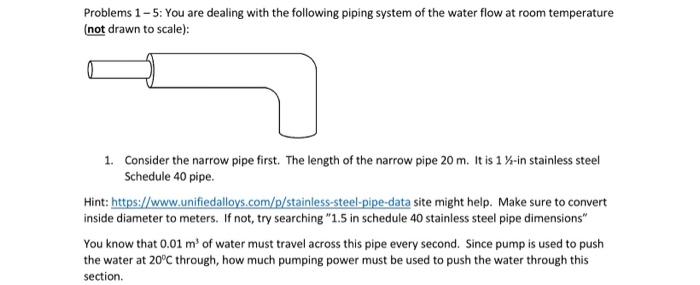

- Problems 1 5 You Are Dealing With The Following Piping System Of The Water Flow At Room Temperature Not Drawn To Scale 1 (24.67 KiB) Viewed 30 times
Problems 1-5: You are dealing with the following piping system of the water flow at room temperature not drawn to scale)
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Problems 1-5: You are dealing with the following piping system of the water flow at room temperature not drawn to scale)
Problems 1-5: You are dealing with the following piping system of the water flow at room temperature not drawn to scale): 1. Consider the narrow pipe first. The length of the narrow pipe 20 m. It is 1 %-in stainless steel Schedule 40 pipe. Hint: https://www.unifiedalloys.com/p/stainle ... -pipe-data site might help. Make sure to convert inside diameter to meters. If not, try searching "1.5 in schedule 40 stainless steel pipe dimensions You know that 0.01 m' of water must travel across this pipe every second. Since pump is used to push the water at 20°C through, how much pumping power must be used to push the water through this section.
