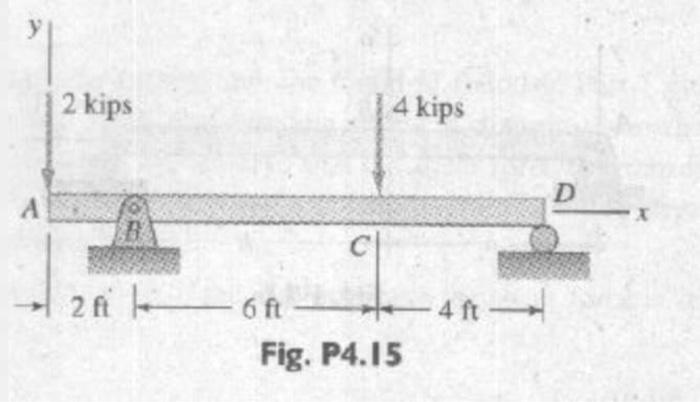

у 2 kips 4 kips D А B 2 Ah - 4 ft - 6 ft Fig. P4.15

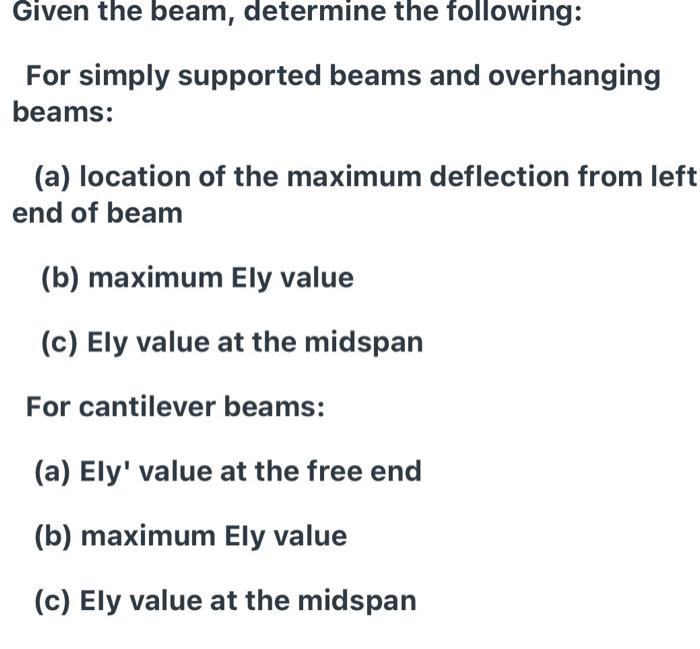

Given the beam, determine the following: For simply supported beams and overhanging beams: (a) location of the maximum deflection from left end of beam (b) maximum Ely value (c) Ely value at the midspan For cantilever beams: (a) Ely' value at the free end (b) maximum Ely value (c) Ely value at the midspan
