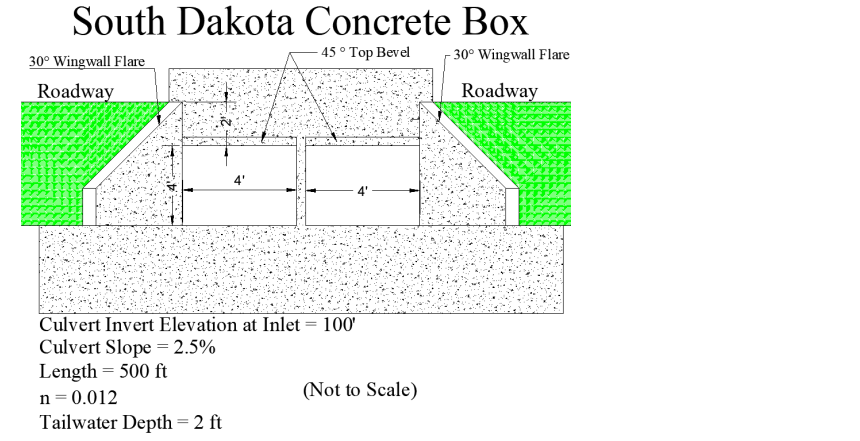

South Dakota Concrete Box 45 Top Bevel 30 Wingwall Flare 30 Wingwall Flare Roadway Roadway Culvert Invert Elevatio 1 (118.24 KiB) Viewed 38 times
Determine
Maximum discharge that the culvert section below can convey with
1’ of
freeboard using HY8. Create a culvert performance curve for the
section.
South Dakota Concrete Box - 45° Top Bevel -30° Wingwall Flare 30° Wingwall Flare Roadway Roadway Culvert Invert Elevation at Inlet = 100' Culvert Slope = 2.5% Length = 500 ft n=0.012 (Not to Scale) Tailwater Depth = 2 ft
