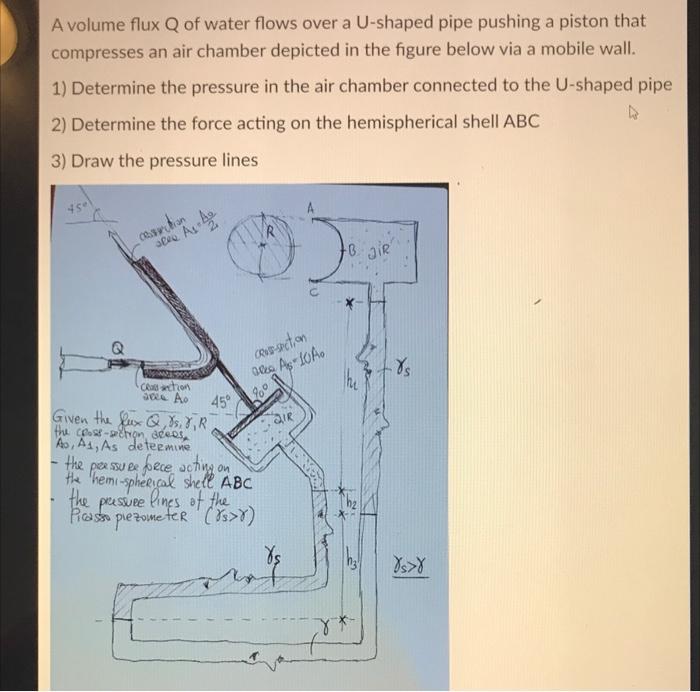

A volume flux Q of water flows over a U-shaped pipe pushing a piston that compresses an air chamber depicted in the figure below via a mobile wall. 1) Determine the pressure in the air chamber connected to the U-shaped pipe 2) Determine the force acting on the hemispherical shell ABC 3) Draw the pressure lines 45 seee Art . QiR Question ales As-1000 % 45 QIR Cachon S. A Given the fux Q, 85, 8, R the (0.2-chon seeds A., As, As determine the petsuee fece voting on the hemispherical shell ABC e lines of the Reasso prezome fer (Ts>Y) the pressure %
