A single row of sheet piles is driven into a permeable layer as shown in the figure. Given: • H = 5.5 m • Hg = 4.4 m Cal

Post by answerhappygod »

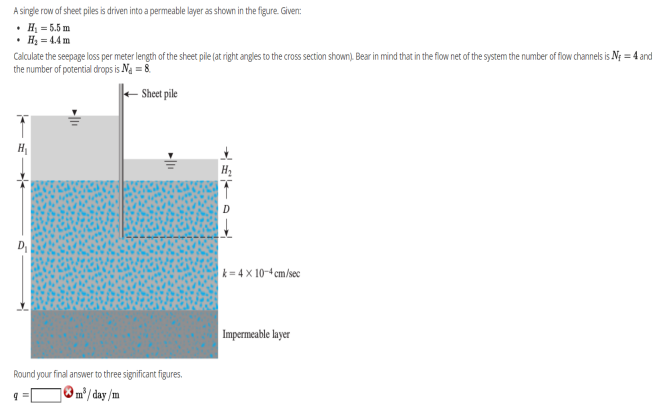

A Single Row Of Sheet Piles Is Driven Into A Permeable Layer As Shown In The Figure Given H 5 5 M Hg 4 4 M Cal 1
A Single Row Of Sheet Piles Is Driven Into A Permeable Layer As Shown In The Figure Given H 5 5 M Hg 4 4 M Cal 1 (98.86 KiB) Viewed 35 times
A single row of sheet piles is driven into a permeable layer as shown in the figure. Given: • H = 5.5 m • Hg = 4.4 m Calculate the seepage loss per meter length of the sheet pile (at right angles to the cross section shown). Bear in mind that in the flow net of the system the number of flow channels is N= 4 and the number of potential drops is Na = 8 Sheet pile H k = 4 x 10-4 cm/sec Impermeable layer Round your final answer to three significant figures. 9 = m/day/m
