- Consider The Structure And Applied Actions Shown In The Adjoining Figure The Frame Is Subjected To A Uniformly Distrbut 1 (215.5 KiB) Viewed 40 times
the question
Thank you

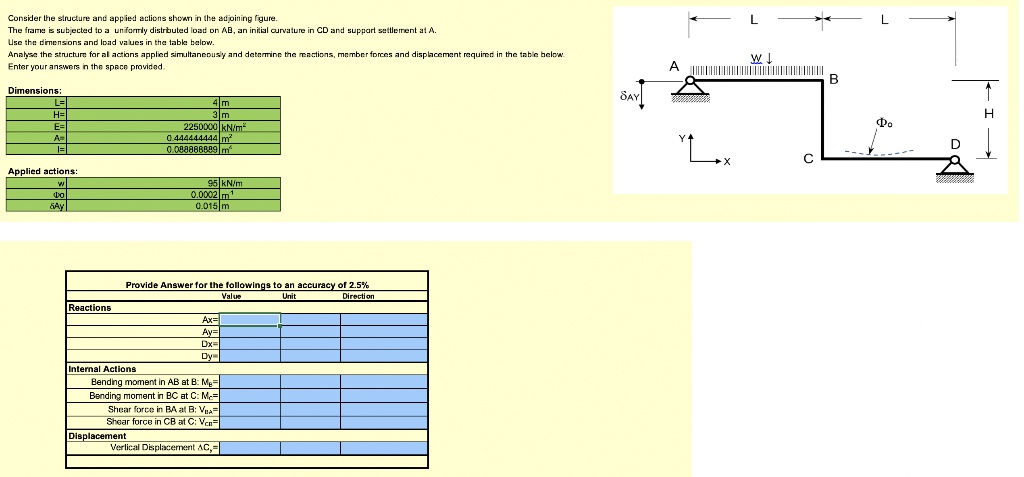

Consider the structure and applied actions shown in the adjoining figure. The frame is subjected to a uniformly distrbuted load on AB, an initial curvature in CD and support settlement at A. Use the dimensions and load values in the table below. Analyse the structure for al actions applied simultaneously and determine the reactions, member forces and displacement required in the table below. Enter your answers in the space provided w A B SAY H Dimensions: L= H= E= A I= 4 m 4 m 3 m 2250000 kN/m 0.444444444 0 ОлаавBB09/m фо Y Lox D с Applied actions: w Doll SAY m 95 kN/m 0.0002 m 0.015 m Provide Answer for the followings to an accuracy of 2.5% Value Unit Direction Reactions = Ax= Ay= Dx= Dy Internal Actions Bending moment in AB at B: MAI Bending moment in BC at C: Mc= Shear force in BA at B: VA Shear force in CB at C: Ven Displacement Vertical Displacement AC,
