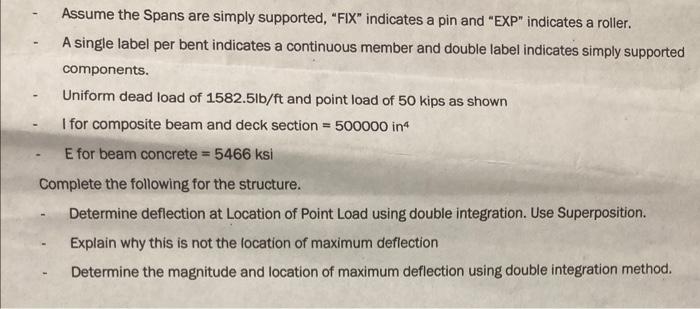

Assume the Spans are simply supported, "FIX" indicates a pin and "EXP" indicates a roller. A single label per bent indicates a continuous member and double label indicates simply supported components. Uniform dead load of 1582.5lb/ft and point load of 50 kips as shown I for composite beam and deck section = 500000 in E for beam concrete = 5466 ksi Complete the following for the structure. Determine deflection at Location of Point Load using double integration. Use Superposition. Explain why this is not the location of maximum deflection Determine the magnitude and location of maximum deflection using double integration method.

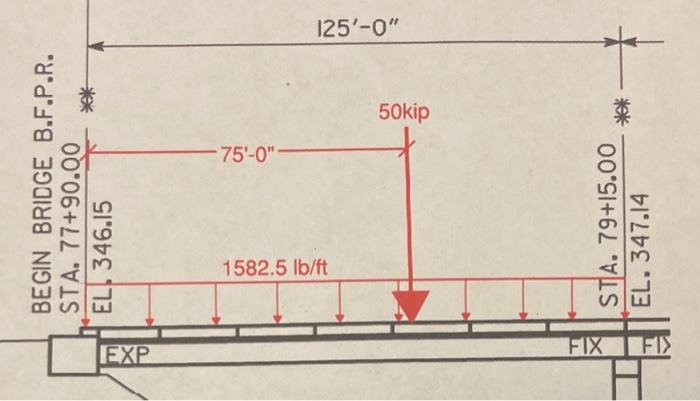

BEGIN BRIDGE B.F.P.R. STA. 77+90.00 EL. 346.15 EXP 1582.5 Ib/ft 75'-0" 125'-0" 50kip ΕΙΧΤΕΙΣ STA. 79+15.00 EL. 347.14 **
