Question 4 (20%) (1) A thin-walled beam having a unifom wall thickness of 10 mm is subjected to a bending moment V = 50

[answerhappygod]

Question 4 20 1 A Thin Walled Beam Having A Unifom Wall Thickness Of 10 Mm Is Subjected To A Bending Moment V 50 1 (32.08 KiB) Viewed 27 times

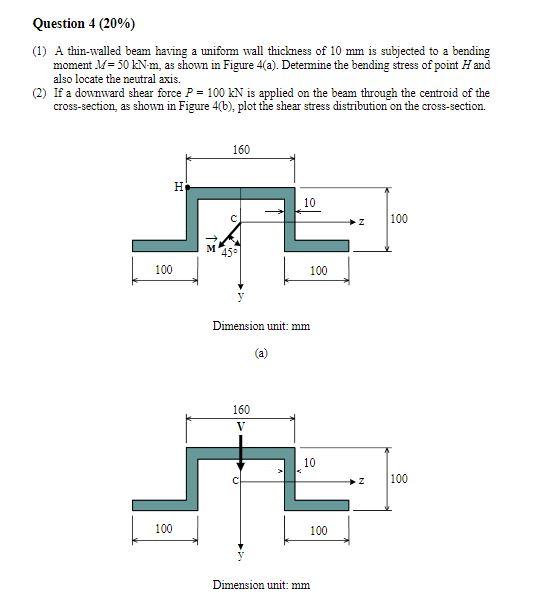

Question 4 (20%) (1) A thin-walled beam having a unifom wall thickness of 10 mm is subjected to a bending moment V = 50 kN-m, as shown in Figure 4(a). Determine the bending stress of point Hand also locate the neutral axis. 2) If a downward shear force P = 100 kN is applied on the beam through the centroid of the cross-section as shown in Figure 4(b), plot the shear stress distribution on the cross-section. 160 H н 10 C Z 100 12 M 45° 100 100 Dimension unit: mm (a) 160 V 10 100 100 100 Dimension unit: mm
