- 1 Sl T2b 8 Ob 5 4 3 2 1 (48.18 KiB) Viewed 50 times

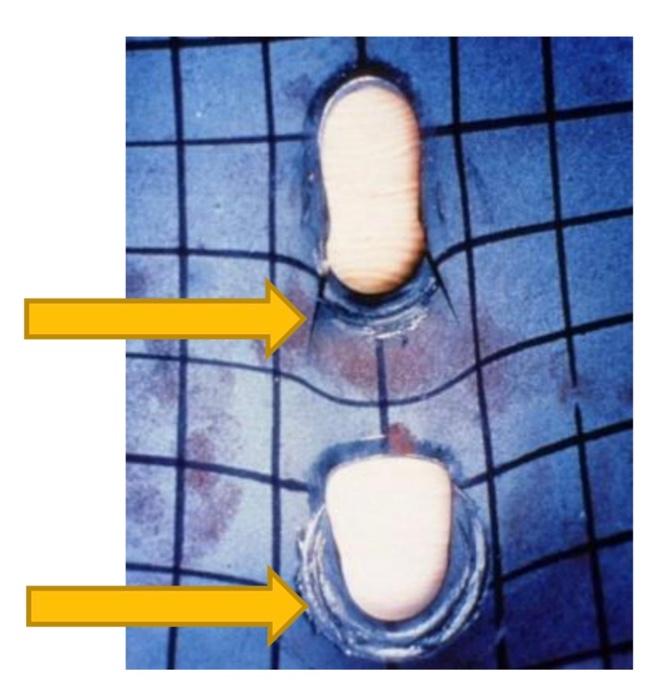

1. Indicates the types of failure indicated in the figure below
- 1 Sl T2b 8 Ob 5 4 3 2 2 (48.18 KiB) Viewed 50 times
2. Identify the ultimate limit states applicable to the connection shown below. Fully justify your answer.
- 1 Sl T2b 8 Ob 5 4 3 2 3 (25.96 KiB) Viewed 50 times
3. In what cases should slip-critical connections be used?
4. Indicates the easiest and most economical method of tightening the bolts in a connection and in what order the bolts should be tightened.
5. Indicate whether the following statement is true or false: "A490 galvanized screws should be used to prevent corrosion on the screws."
6. If you were called to inspect the following connection, would you consider the connection to be adequate and why?

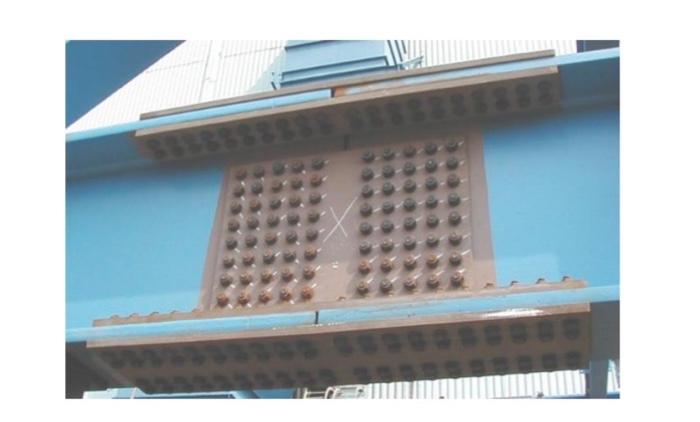

7. Do the markings shown on the splice bolts in the web of the next beam indicate that each bolt passed inspection? If not, what do those marks indicate?
7. Do the markings shown on the splice bolts in the web of the next beam indicate that each bolt passed inspection? If not, what do those marks indicate?
- 1 Sl T2b 8 Ob 5 4 3 2 4 (25.96 KiB) Viewed 50 times
8. Is it true that full penetration welds are generally the cheapest?
9. Name at least three factors on which the slip resistance of a slip-critical connection depends.

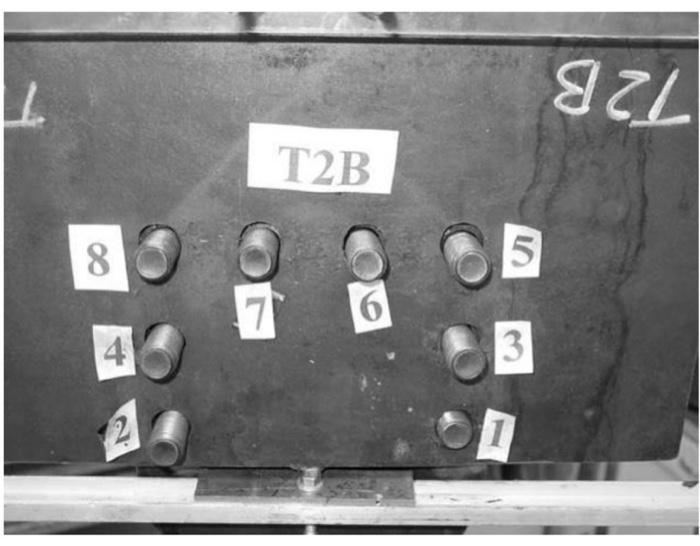

10. Explain the possible failure modes in the specimen shown in the figure
- 1 Sl T2b 8 Ob 5 4 3 2 5 (44.34 KiB) Viewed 50 times
