2. With reference to the beam shown a. Draw the shear and moment diagram labeling its values. You may do this by writing

Post by answerhappygod »

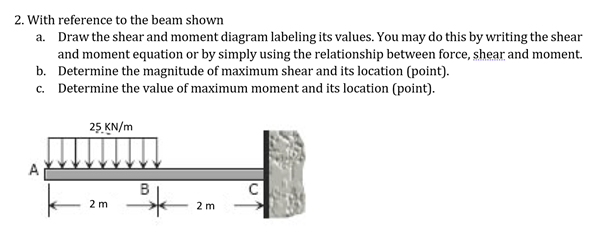

2 With Reference To The Beam Shown A Draw The Shear And Moment Diagram Labeling Its Values You May Do This By Writing 1
2 With Reference To The Beam Shown A Draw The Shear And Moment Diagram Labeling Its Values You May Do This By Writing 1 (48.83 KiB) Viewed 37 times
2. With reference to the beam shown a. Draw the shear and moment diagram labeling its values. You may do this by writing the shear and moment equation or by simply using the relationship between force, shear and moment. b. Determine the magnitude of maximum shear and its location (point). c. Determine the value of maximum moment and its location (point). 25 KN/m A B 2 m 와 2 m
