Q1. (5 Points) For the Standard Sharp-edged Orifice experiments, the following data was obtained, determine Cd, Cu, and

Post by answerhappygod »

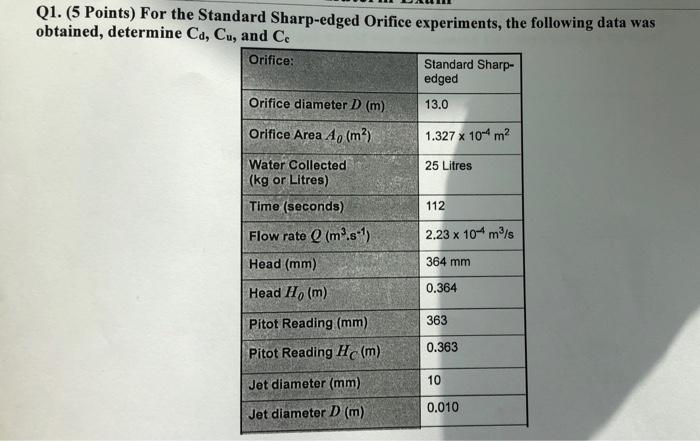

Q1 5 Points For The Standard Sharp Edged Orifice Experiments The Following Data Was Obtained Determine Cd Cu And 1
Q1 5 Points For The Standard Sharp Edged Orifice Experiments The Following Data Was Obtained Determine Cd Cu And 1 (41.65 KiB) Viewed 41 times
Q1. (5 Points) For the Standard Sharp-edged Orifice experiments, the following data was obtained, determine Cd, Cu, and Cc Orifice: Standard Sharp- edged Orifice diameter D (m) 13.0 Orifice Area A, (m) 1.327 x 10-4 m2 25 Litres Water Collected (kg or Litres) Time (seconds) 112 2.23 x 104 m/s Flow rate (m'.s) Head (mm) 364 mm Head H. (m) 0.364 Pitot Reading (mm) 363 Pitot Reading Hc (m) 0.363 Jet diameter (mm) 10 0.010 Jet diameter D (m)
