4. (20 points) Consisting of members ABE, BD, and CD, the mechanism below pushes on the spring at E when being pulled wi

Post by answerhappygod »

4 20 Points Consisting Of Members Abe Bd And Cd The Mechanism Below Pushes On The Spring At E When Being Pulled Wi 1
4 20 Points Consisting Of Members Abe Bd And Cd The Mechanism Below Pushes On The Spring At E When Being Pulled Wi 1 (26.36 KiB) Viewed 22 times

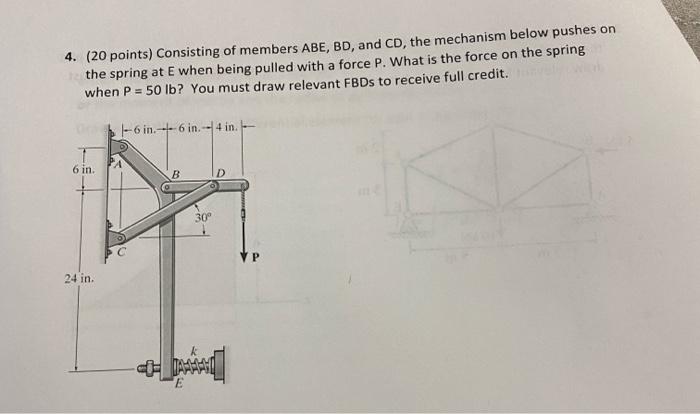

4. (20 points) Consisting of members ABE, BD, and CD, the mechanism below pushes on the spring at E when being pulled with a force P. What is the force on the spring when P = 50 lb? You must draw relevant FBDs to receive full credit. |-6 in 6 in.-- 4 in 6 in B D 30 P 24 in.
