B 3 m 6 m 1. (10 points + 10 bonus points) Rod AD shown in the figure is supported by the ball-and-socket joint at D and

Post by answerhappygod »

B 3 M 6 M 1 10 Points 10 Bonus Points Rod Ad Shown In The Figure Is Supported By The Ball And Socket Joint At D And 1
B 3 M 6 M 1 10 Points 10 Bonus Points Rod Ad Shown In The Figure Is Supported By The Ball And Socket Joint At D And 1 (38.9 KiB) Viewed 22 times

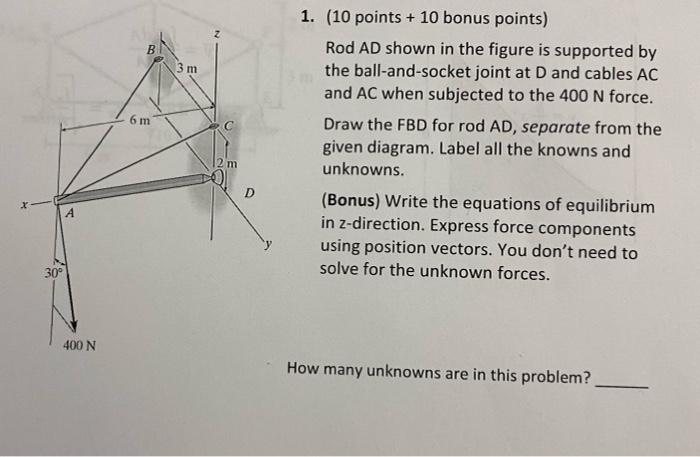

B 3 m 6 m 1. (10 points + 10 bonus points) Rod AD shown in the figure is supported by the ball-and-socket joint at D and cables AC and AC when subjected to the 400 N force. Draw the FBD for rod AD, separate from the given diagram. Label all the knowns and unknowns. (Bonus) Write the equations of equilibrium in z-direction. Express force components using position vectors. You don't need to solve for the unknown forces. ות 2 D A 30° 400 N How many unknowns are in this problem?
