8 MPa 6.5 MPa 50 MPa

Post by answerhappygod »

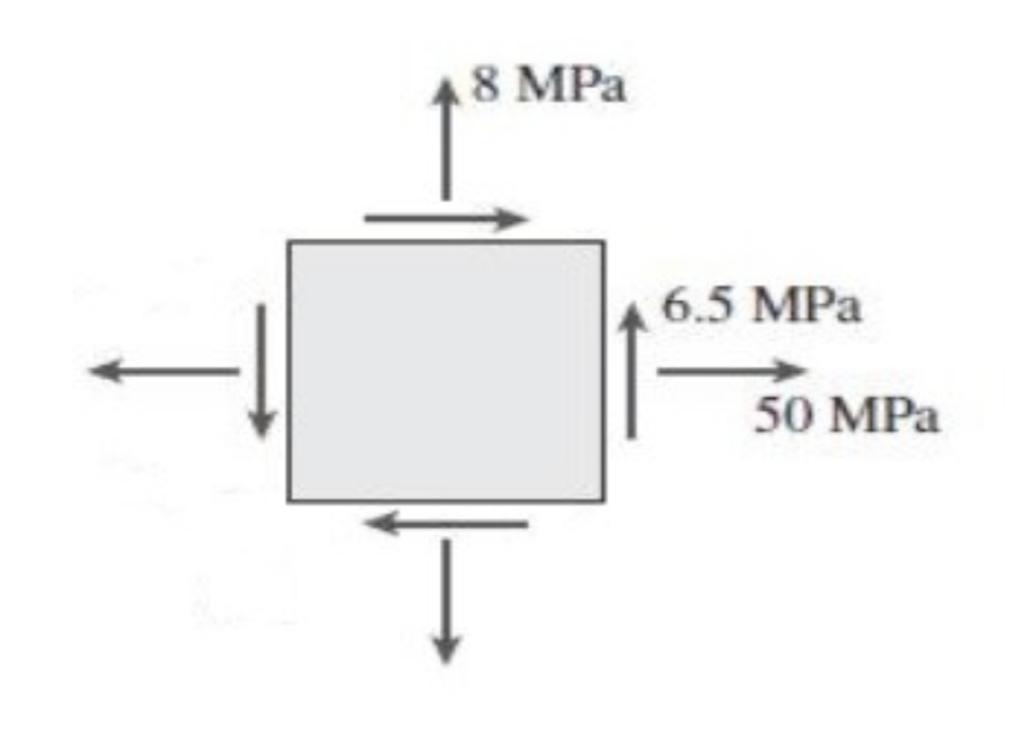

8 Mpa 6 5 Mpa 50 Mpa 1
8 Mpa 6 5 Mpa 50 Mpa 1 (24.75 KiB) Viewed 22 times
Find the values of σx, σy, τxy.
Find the principal stresses
Find the maximum shear stress and associated normal stress
Find the stresses acting on an element oriented at an angle
20o
from the x axis.
8 MPa 6.5 MPa 50 MPa
