Problem 1: The lap joint shown in the figure is fastened by nine 20mm diameter rivets. Each plate has a thickness of 25m

Post by answerhappygod »

Problem 1 The Lap Joint Shown In The Figure Is Fastened By Nine 20mm Diameter Rivets Each Plate Has A Thickness Of 25m 1
Problem 1 The Lap Joint Shown In The Figure Is Fastened By Nine 20mm Diameter Rivets Each Plate Has A Thickness Of 25m 1 (88.32 KiB) Viewed 18 times

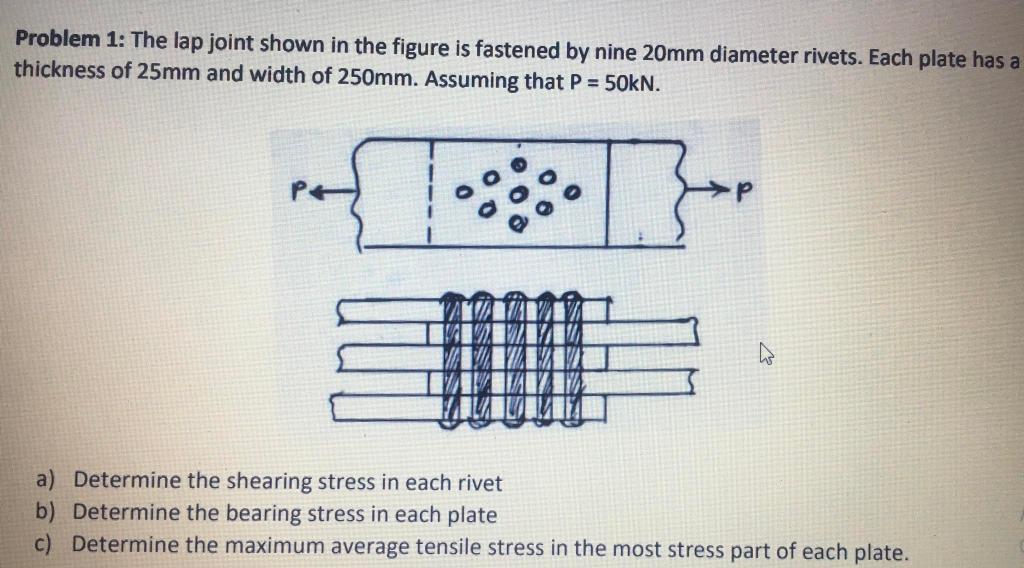

Problem 1: The lap joint shown in the figure is fastened by nine 20mm diameter rivets. Each plate has a thickness of 25mm and width of 250mm. Assuming that P = 50kN. DRUZE a) Determine the shearing stress in each rivet b) Determine the bearing stress in each plate c) Determine the maximum average tensile stress in the most stress part of each plate.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
