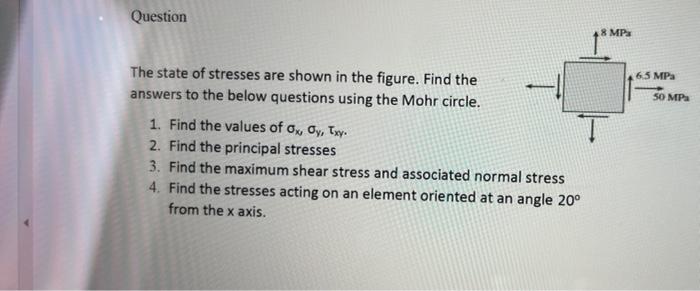

Question 8 MP 6.5 MPa 50 MPa The state of stresses are shown in the figure. Find the answers to the below questions using the Mohr circle. 1. Find the values of ox, Oy, Txy 2. Find the principal stresses 3. Find the maximum shear stress and associated normal stress 4. Find the stresses acting on an element oriented at an angle 20° from the x axis.
