Problem 2 Slope Deflection Method (20 pts) Draw Shear and moment diagram for the beam given in Figure 2 using Slope Defl

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Problem 2 Slope Deflection Method (20 pts) Draw Shear and moment diagram for the beam given in Figure 2 using Slope Defl

Post by answerhappygod »

Problem 2 Slope Deflection Method 20 Pts Draw Shear And Moment Diagram For The Beam Given In Figure 2 Using Slope Defl 1
Problem 2 Slope Deflection Method 20 Pts Draw Shear And Moment Diagram For The Beam Given In Figure 2 Using Slope Defl 1 (20.85 KiB) Viewed 46 times

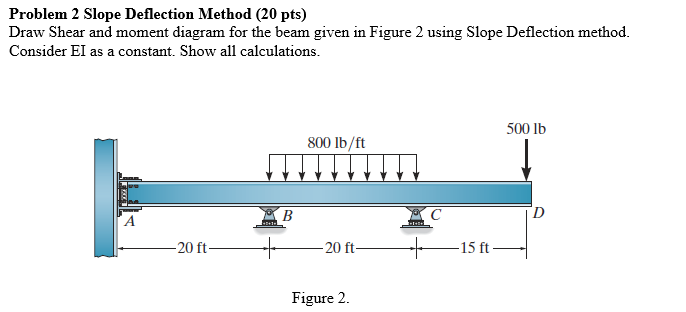

Problem 2 Slope Deflection Method (20 pts) Draw Shear and moment diagram for the beam given in Figure 2 using Slope Deflection method. Consider EI as a constant. Show all calculations. 500 lb 800 lb/ft А D B +3+1+1 -20 ft 20 ft- 15 ft Figure 2.
