Calculate The Internal Forced Of The Following Beam 62 64 Kn 30 G 3 M F 187 92 In 187 92 In Scanned With Camscanner A 1 (283.12 KiB) Viewed 33 times
MAKE SURE TO SHOW ALL YOUR WORK

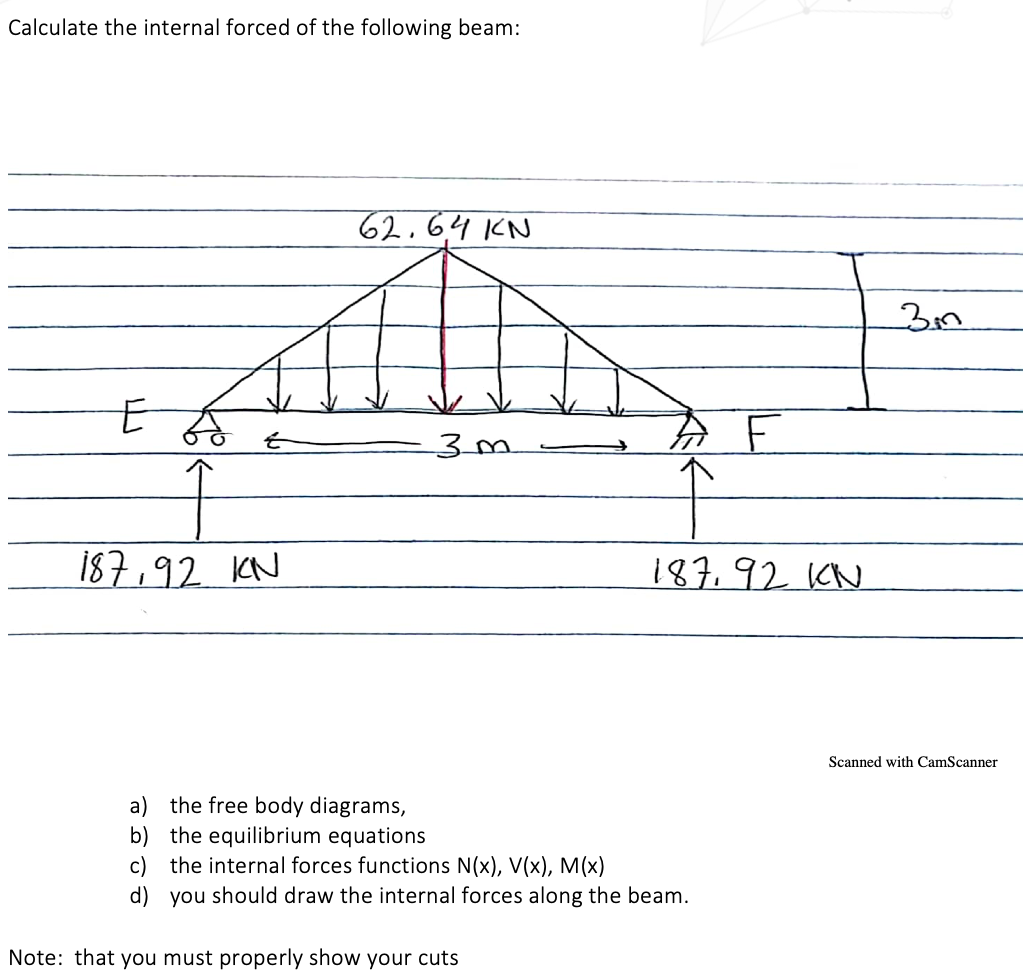

Calculate the internal forced of the following beam: 62.64 KN 30 G 3 m. F 187,92 IN 187.92 IN Scanned with CamScanner a) the free body diagrams, b) the equilibrium equations c) the internal forces functions N(x), V(x), M(x) d) you should draw the internal forces along the beam. Note: that you must properly show your cuts
