Sample B Q.1:A composite beam is made of wood and reinforced with a steel strap located on it & bottom side. It has the

Post by answerhappygod »

Sample B Q 1 A Composite Beam Is Made Of Wood And Reinforced With A Steel Strap Located On It Bottom Side It Has The 1
Sample B Q 1 A Composite Beam Is Made Of Wood And Reinforced With A Steel Strap Located On It Bottom Side It Has The 1 (159.59 KiB) Viewed 37 times

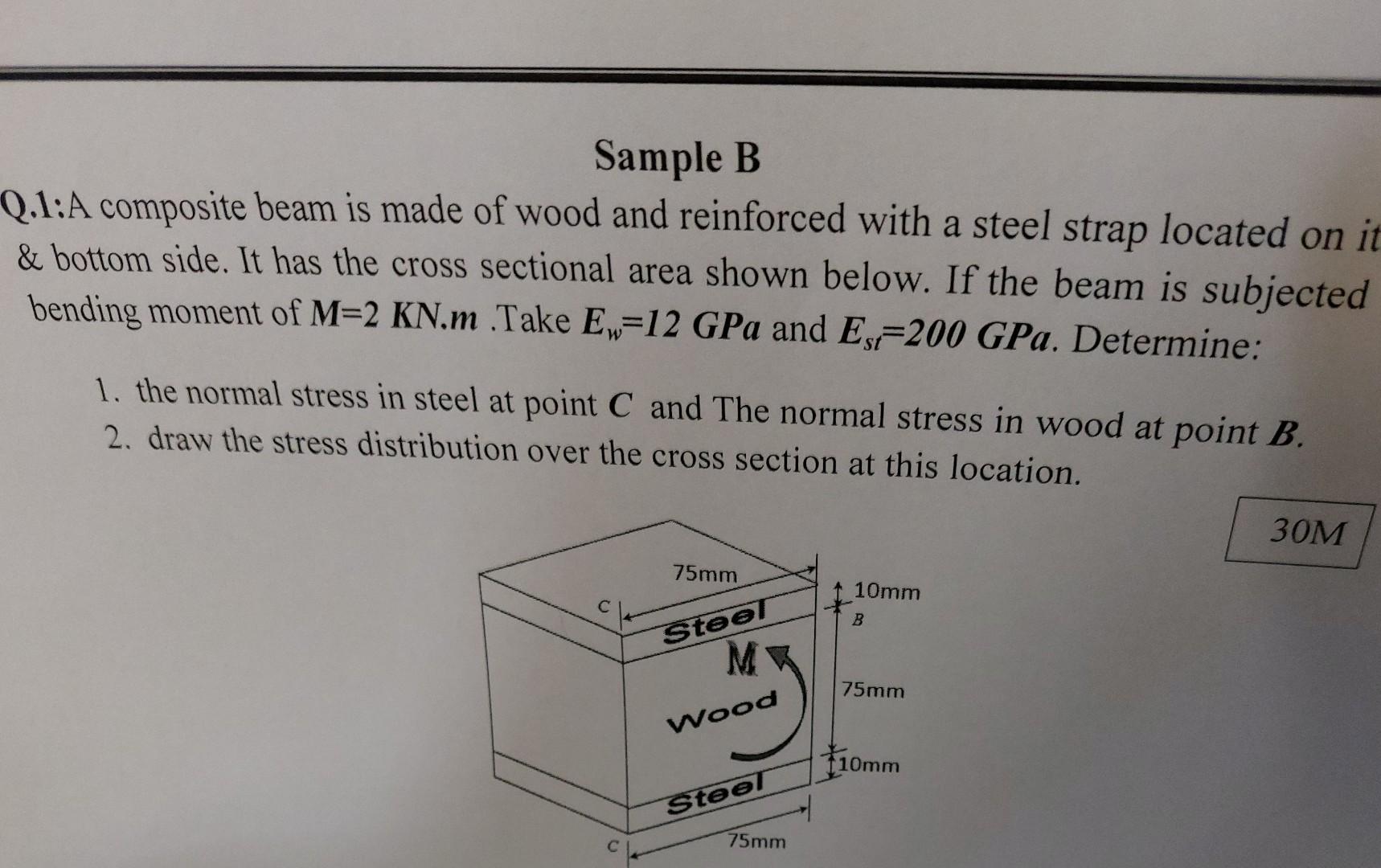

Sample B Q.1:A composite beam is made of wood and reinforced with a steel strap located on it & bottom side. It has the cross sectional area shown below. If the beam is subjected bending moment of M=2 KN.m .Take Ew=12 GPa and Ex=200 GPa. Determine: 1. the normal stress in steel at point C and The normal stress in wood at point B. 2. draw the stress distribution over the cross section at this location. 30M 75mm 10mm B Steel MW 75mm Wood 110mm Steel C 75mm
