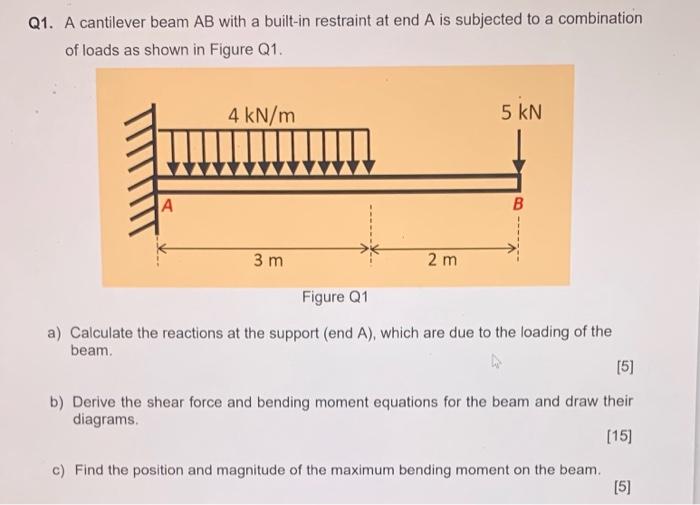

Q1. A cantilever beam AB with a built-in restraint at end A is subjected to a combination of loads as shown in Figure Q1

[answerhappygod]

Q1 A Cantilever Beam Ab With A Built In Restraint At End A Is Subjected To A Combination Of Loads As Shown In Figure Q1 1 (33.31 KiB) Viewed 40 times

Q1. A cantilever beam AB with a built-in restraint at end A is subjected to a combination of loads as shown in Figure Q1. 4 kN/m 5 kN А B 3 m 2 m Figure Q1 a) Calculate the reactions at the support (end A), which are due to the loading of the beam [5] b) Derive the shear force and bending moment equations for the beam and draw their diagrams. (15) c) Find the position and magnitude of the maximum bending moment on the beam. [5]
