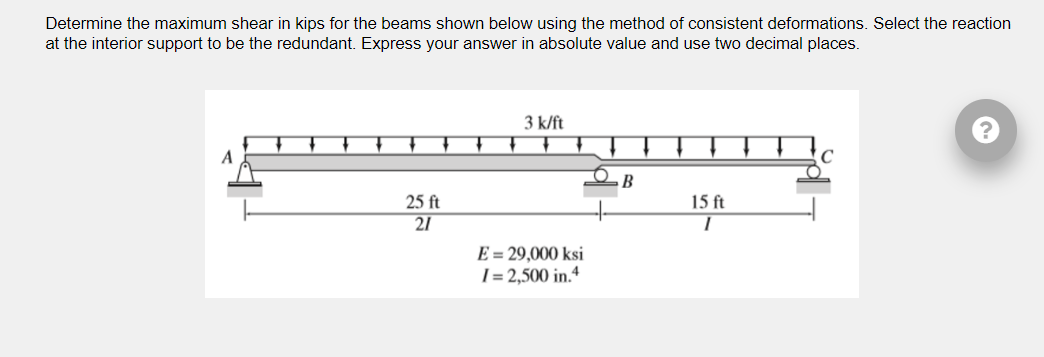

Determine the maximum shear in kips for the beams shown
below using the method of consistent deformations. Select
the reaction at the interior support to be the redundant. Express
your answer in absolute value and use two decimal places.
Determine The Maximum Shear In Kips For The Beams Shown Below Using The Method Of Consistent Deformations Select The Re 1 (40.14 KiB) Viewed 50 times
Determine the maximum shear in kips for the beams shown below using the method of consistent deformations. Select the reaction at the interior support to be the redundant. Express your answer in absolute value and use two decimal places. 3 k/ft А с O B 25 ft 15 ft 21 E = 29,000 ksi 1 = 2,500 in.
