Exercise 2 (45 points) For the below rectangular beam subjected to loading shown. The load F is applied applied a mid-sp

[answerhappygod]

Exercise 2 45 Points For The Below Rectangular Beam Subjected To Loading Shown The Load F Is Applied Applied A Mid Sp 1 (48.39 KiB) Viewed 31 times

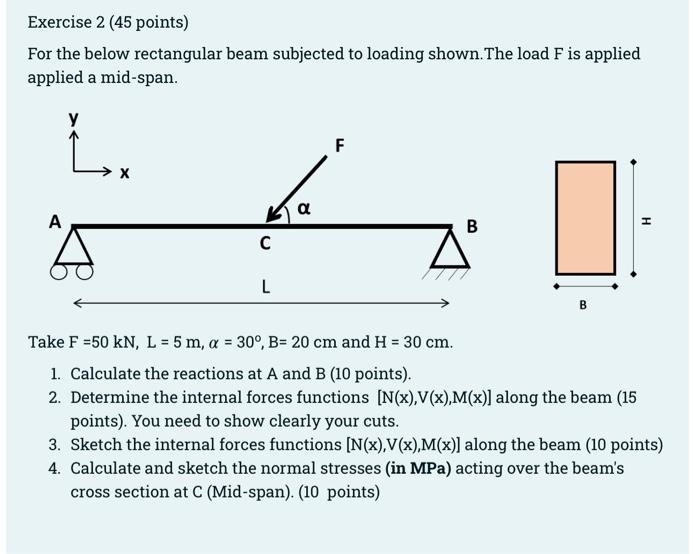

Exercise 2 (45 points) For the below rectangular beam subjected to loading shown. The load F is applied applied a mid-span. у Ž, F х lo a A H B с L B B Take F =50 kN, L = 5 m, a = 30°, B= 20 cm and H = 30 cm. 1. Calculate the reactions at A and B (10 points). 2. Determine the internal forces functions (N(x),V(x),M(x)] along the beam (15 points). You need to show clearly your cuts. 3. Sketch the internal forces functions [N(x),V(x), M(x)] along the beam (10 points) 4. Calculate and sketch the normal stresses in MPa) acting over the beam's cross section at C(Mid-span). (10 points)
