1. An object is given in isometric projection as in Figure 1. Draw the object in third angle projection at a scale of 1:
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
1. An object is given in isometric projection as in Figure 1. Draw the object in third angle projection at a scale of 1:

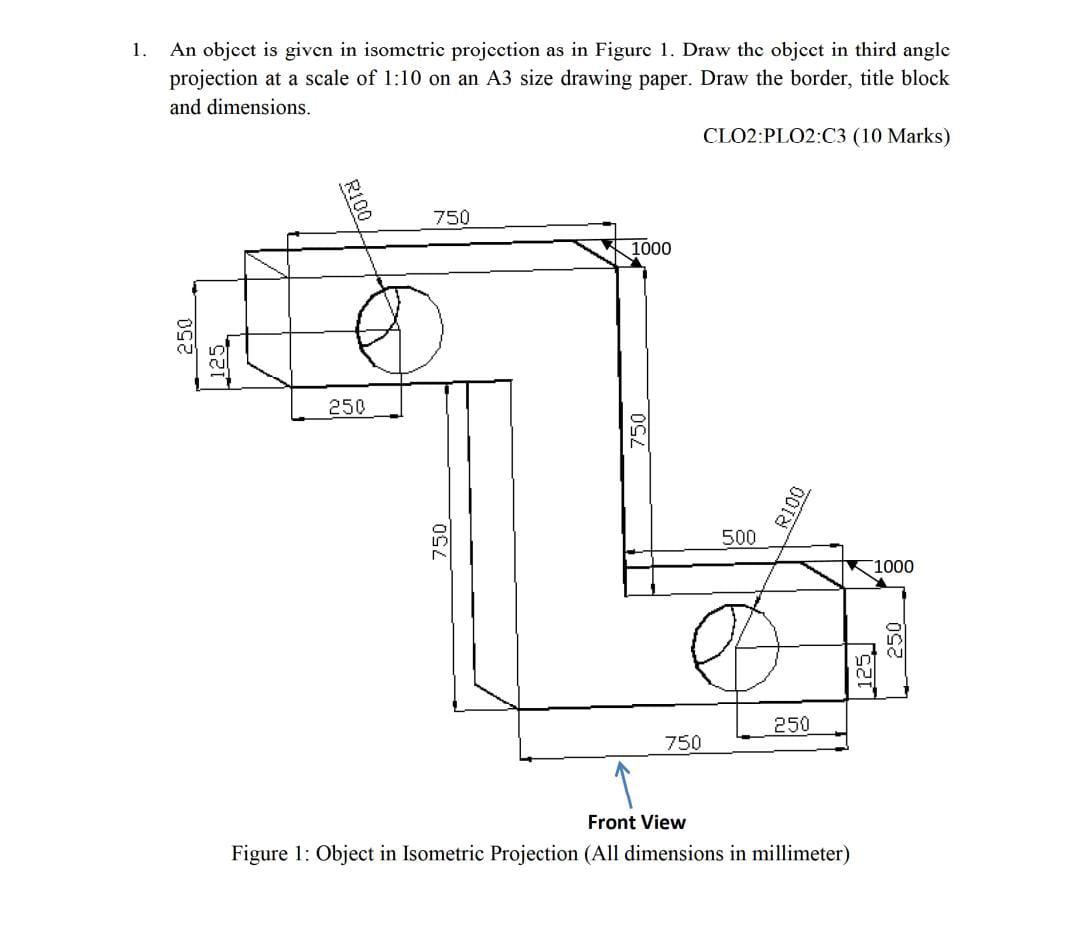

1. An object is given in isometric projection as in Figure 1. Draw the object in third angle projection at a scale of 1:10 on an A3 size drawing paper. Draw the border, title block and dimensions. CLO2:PLO2:C3 (10 Marks) R100 750 1000 250 250 750 001 750 500 1000 250 125 250 750 Front View Figure 1: Object in Isometric Projection (All dimensions in millimeter)
