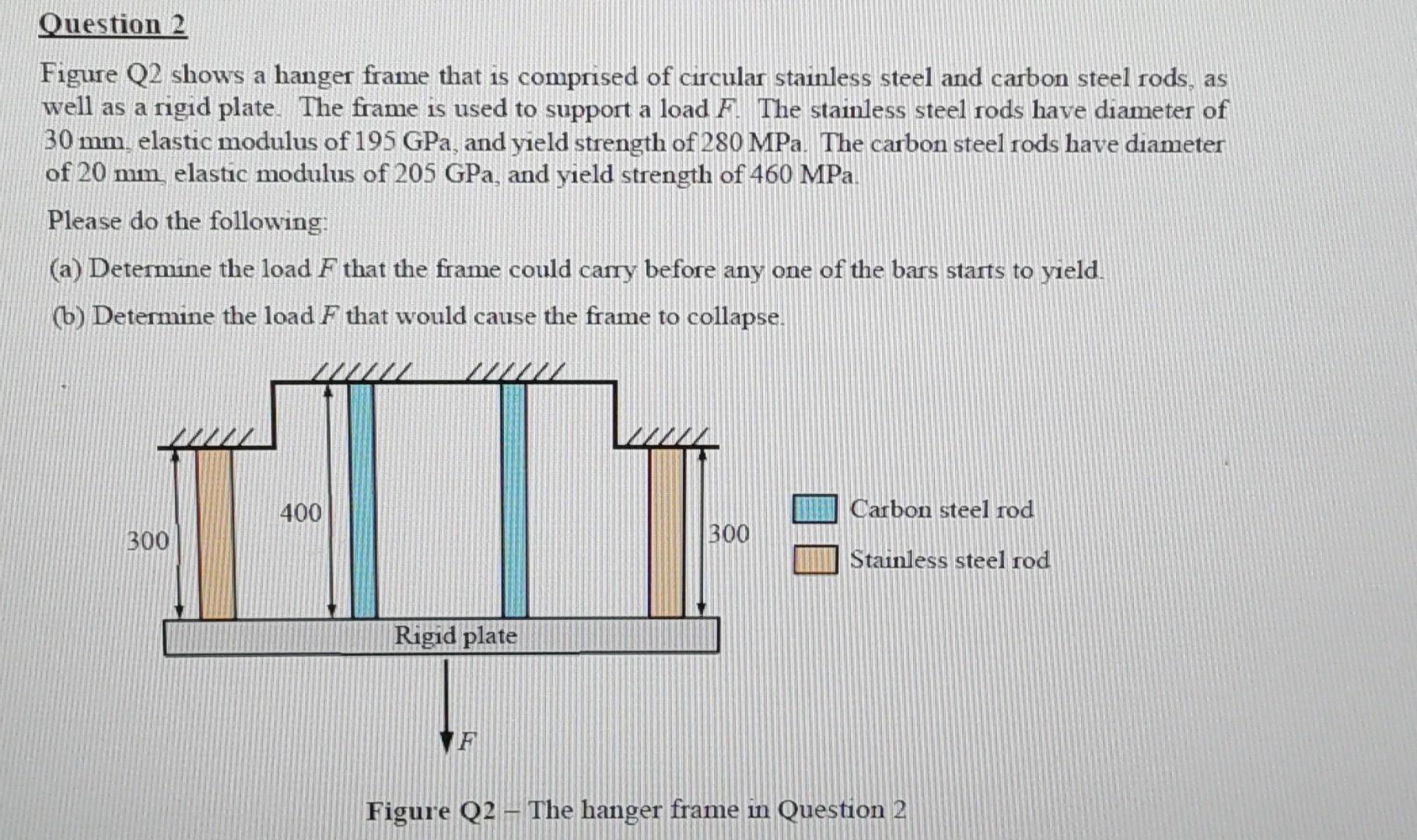

Question 2 Figure Q2 shows a hanger frame that is comprised of circular stainless steel and carbon steel rods, as well as a rigid plate. The frame is used to support a load F. The stainless steel rods have diameter of 30 mm, elastic modulus of 195 GPa, and yield strength of 280 MPa. The carbon steel rods have diameter of 20 mm elastic modulus of 205 GPa, and yield strength of 460 MPa. Please do the following: (a) Determine the load F that the frame could carry before any one of the bars starts to yield. (b) Determine the load F that would cause the frame to collapse 400 Carbon steel rod 300 300 Stainless steel rod Rigid plate Figure Q2 - The hanger frame in Question 2
