- 2 For The Beam Shown In Figure 2 A Provide The Equations Of Equilibrium And Calculate The Support Reactions 3 Marks 1 (45.96 KiB) Viewed 47 times
can you please solve section B please.
thanks in advance.

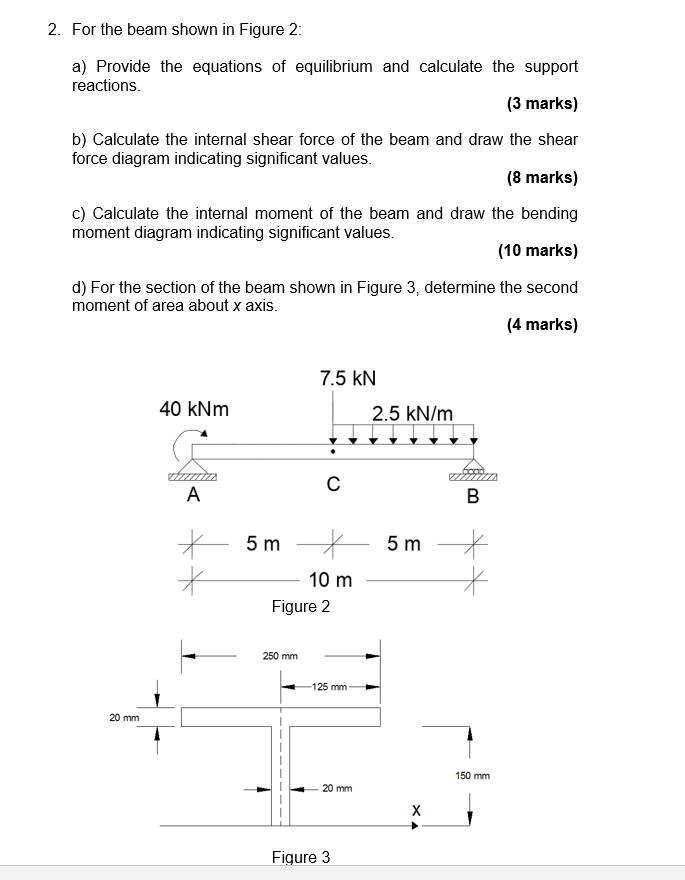

2. For the beam shown in Figure 2: a) Provide the equations of equilibrium and calculate the support reactions. (3 marks) b) Calculate the internal shear force of the beam and draw the shear force diagram indicating significant values. (8 marks) c) Calculate the internal moment of the beam and draw the bending moment diagram indicating significant values. (10 marks) d) For the section of the beam shown in Figure 3, determine the second moment of area about x axis. (4 marks) 7.5 KN 40 kNm 2.5 kN/m с A B + 5 m X X 10 m Figure 2 5 m + X 250 mm 125 mm 20 mm 150 mm 20 mm X Figure 3
