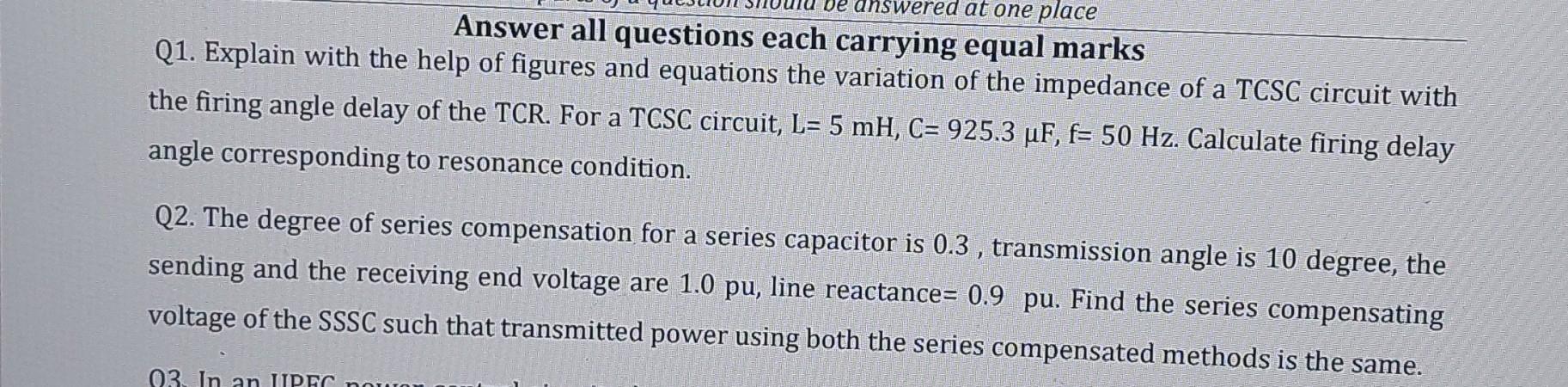

- Be Answered At One Place Answer All Questions Each Carrying Equal Marks Q1 Explain With The Help Of Figures And Equatio 1 (188.54 KiB) Viewed 29 times
be answered at one place Answer all questions each carrying equal marks Q1. Explain with the help of figures and equations the variation of the impedance of a TCSC circuit with the firing angle delay of the TCR. For a TCSC circuit, L= 5 mH, C= 925.3 uF, f= 50 Hz. Calculate firing delay angle corresponding to resonance condition. Q2. The degree of series compensation for a series capacitor is 0.3 , transmission angle is 10 degree, the sending and the receiving end voltage are 1.0 pu, line reactance= 0.9 pu. Find the series compensating voltage of the SSSC such that transmitted power using both the series compensated methods is the same. 13. In an LIPC nomo
