QUESTION 3 A beam to beam joint in bolt connection of single side cleat type is shown in Figure 3. Verify the shear resi

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

QUESTION 3 A beam to beam joint in bolt connection of single side cleat type is shown in Figure 3. Verify the shear resi

Post by answerhappygod »

Question 3 A Beam To Beam Joint In Bolt Connection Of Single Side Cleat Type Is Shown In Figure 3 Verify The Shear Resi 1
Question 3 A Beam To Beam Joint In Bolt Connection Of Single Side Cleat Type Is Shown In Figure 3 Verify The Shear Resi 1 (80.88 KiB) Viewed 37 times

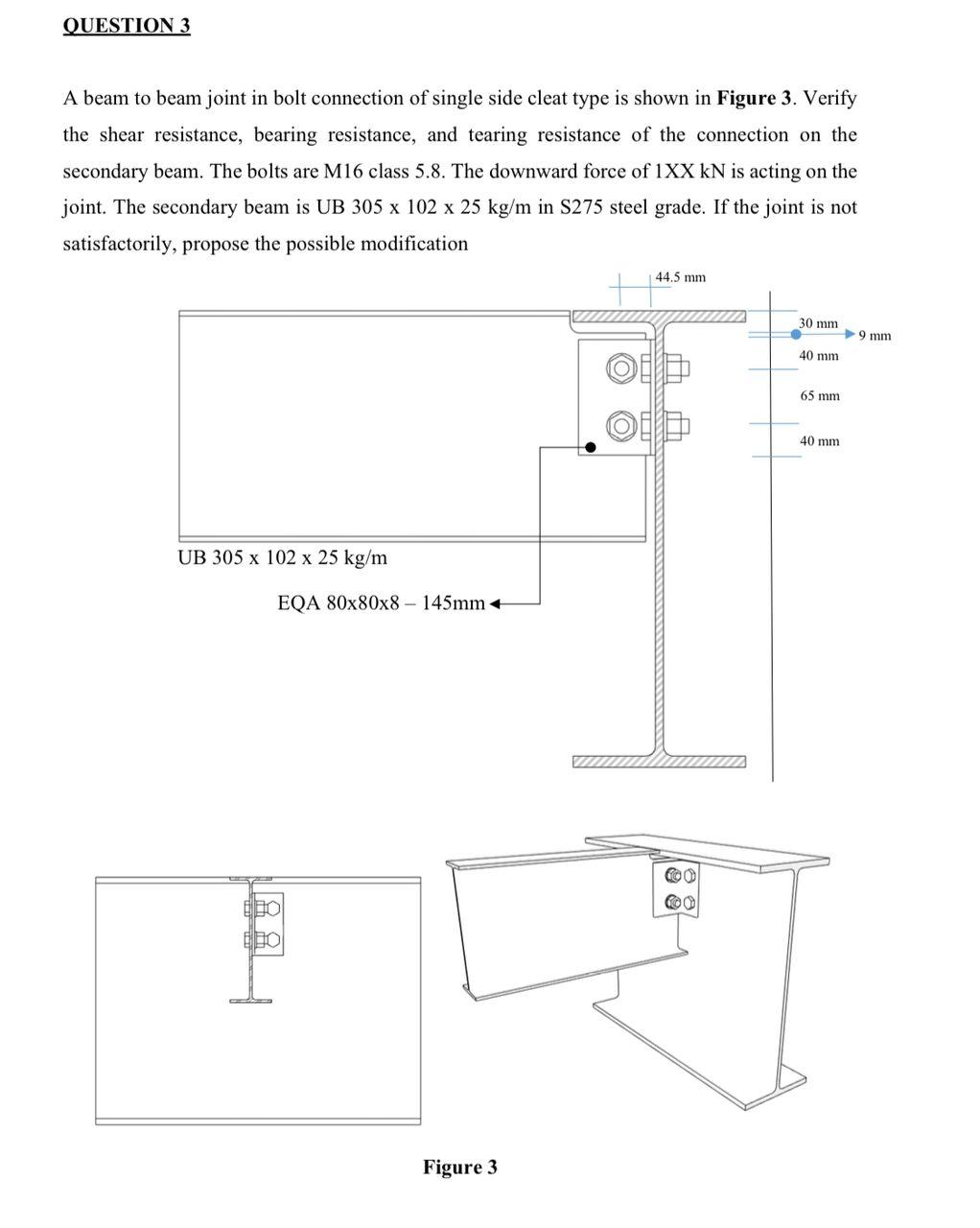

QUESTION 3 A beam to beam joint in bolt connection of single side cleat type is shown in Figure 3. Verify the shear resistance, bearing resistance, and tearing resistance of the connection on the secondary beam. The bolts are M16 class 5.8. The downward force of 1XX KN is acting on the joint. The secondary beam is UB 305 x 102 x 25 kg/m in S275 steel grade. If the joint is not satisfactorily, propose the possible modification 44.5 mm 30 mm וחוון 9 40 mm o o 血而 65 mm 40 mm UB 305 x 102 x 25 kg/m EQA 80x80x8 – 145mm 0 BRO 0 BO Figure 3
