- 1 Solve The Following Problems Problem 1 Draw The Shear And Moment Diagrams For The Simply Supported Beam 15 Pts 2 1 (46.62 KiB) Viewed 37 times
1. Solve the following problems. Problem 1. Draw the shear and moment diagrams for the simply supported beam. (15 pts) 2
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
1. Solve the following problems. Problem 1. Draw the shear and moment diagrams for the simply supported beam. (15 pts) 2

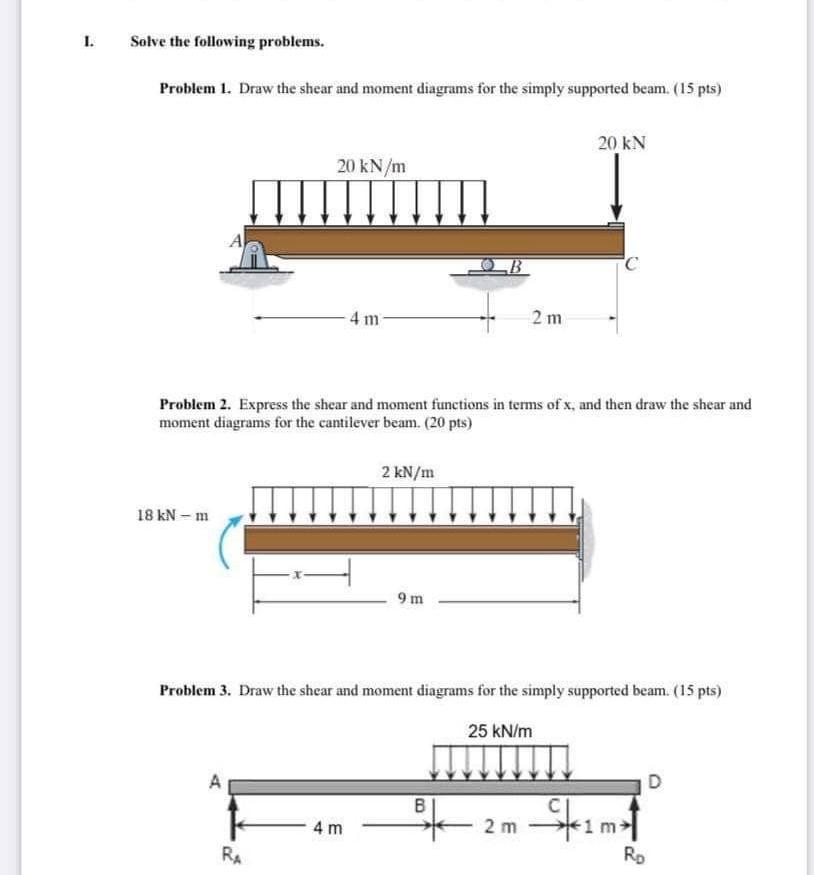

1. Solve the following problems. Problem 1. Draw the shear and moment diagrams for the simply supported beam. (15 pts) 20 KN 20 kN/m 4 m 2 m Problem 2. Express the shear and moment functions in terms of x, and then draw the shear and moment diagrams for the cantilever beam. (20 pts) 2 kN/m 18 kNm 9 m Problem 3. Draw the shear and moment diagrams for the simply supported beam (15 pts) А 25 kN/m ITUUTTI B 2 m 1 1 m D 4 m RA Ro
