QUESTION 5 (30 marks) A consolidated drained triaxial test was conducted on a normally consolidated clay. Following are

Post by answerhappygod »

Question 5 30 Marks A Consolidated Drained Triaxial Test Was Conducted On A Normally Consolidated Clay Following Are 1
Question 5 30 Marks A Consolidated Drained Triaxial Test Was Conducted On A Normally Consolidated Clay Following Are 1 (89.62 KiB) Viewed 40 times

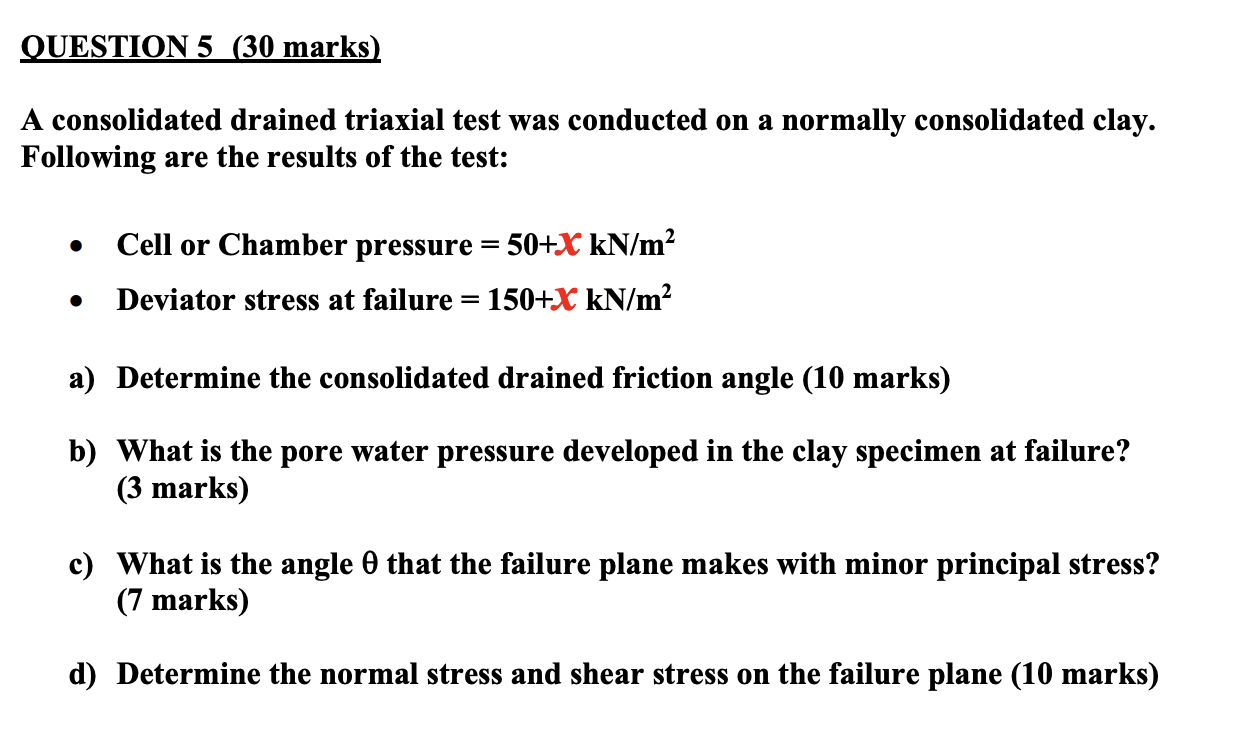

QUESTION 5 (30 marks) A consolidated drained triaxial test was conducted on a normally consolidated clay. Following are the results of the test: . Cell or Chamber pressure = 50+X kN/m² Deviator stress at failure = 150+X kN/m² a) Determine the consolidated drained friction angle (10 marks) b) What is the pore water pressure developed in the clay specimen at failure? (3 marks) c) What is the angle o that the failure plane makes with minor principal stress? (7 marks) d) Determine the normal stress and shear stress on the failure plane (10 marks)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
