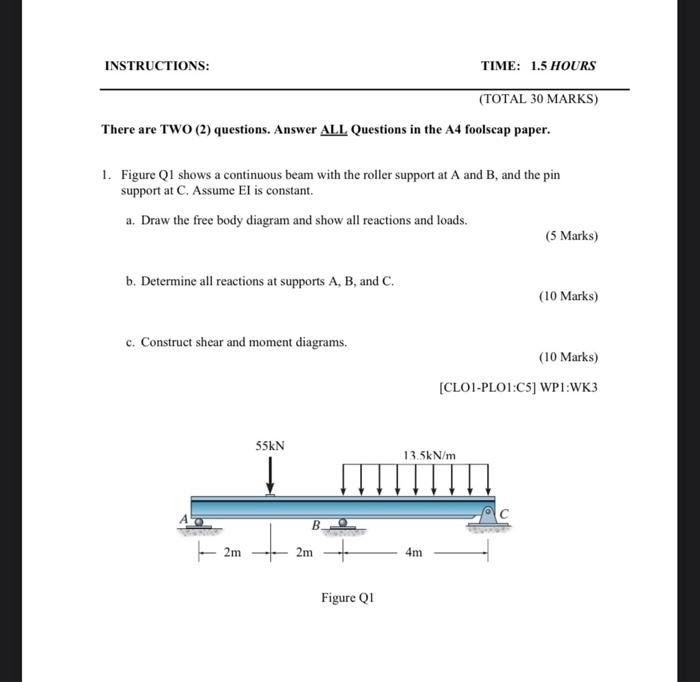

INSTRUCTIONS: TIME: 1.5 HOURS (TOTAL 30 MARKS) There are TWO (2) questions. Answer ALL Questions in the A4 foolscap paper. 1. Figure Q1 shows a continuous beam with the roller support at A and B, and the pin support at C. Assume El is constant. a. Draw the free body diagram and show all reactions and loads. (5 Marks) b. Determine all reactions at supports A, B, and C. (10 Marks) c. Construct shear and moment diagrams. (10 Marks) [CLOI-PLOI:C5] WP1:WK3 55kN 13.5kN/m 2m 2m 4m Figure Q1
