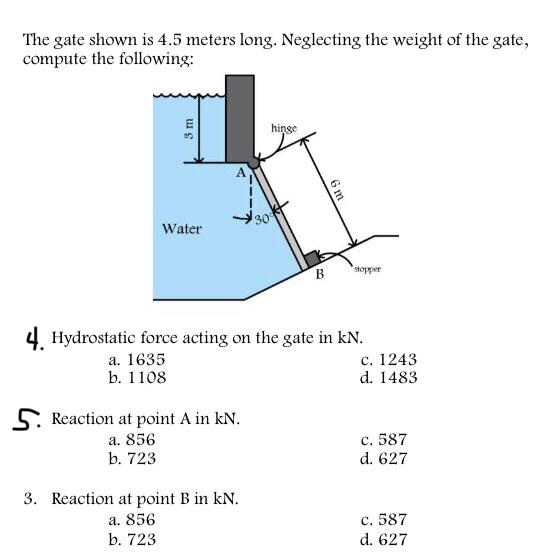

The gate shown is 4.5 meters long. Neglecting the weight of the gate, compute the following: 3 m hinge A w9 30 Water B s

[answerhappygod]

The Gate Shown Is 4 5 Meters Long Neglecting The Weight Of The Gate Compute The Following 3 M Hinge A W9 30 Water B S 1 (27.72 KiB) Viewed 20 times

The gate shown is 4.5 meters long. Neglecting the weight of the gate, compute the following: 3 m hinge A w9 30 Water B stopper 4. Hydrostatic force acting on the gate in kN. a. 1635 c. 1243 b. 1108 d. 1483 5. Reaction at point A in kN. a. 856 b. 723 c. 587 d. 627 3. Reaction at point B in kN. a. 856 b. 723 c. 587 d. 627
