2. The truss shown in Figure Q2 has pin support at E and roller support at C. Assume the members are pin connected at th

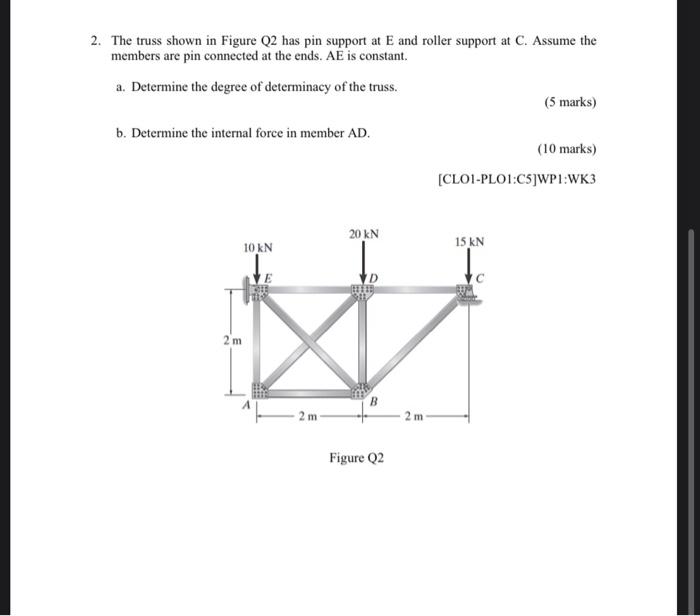

2. The truss shown in Figure Q2 has pin support at E and roller support at C. Assume the members are pin connected at the ends. AE is constant. a. Determine the degree of determinacy of the truss. (5 marks) b. Determine the internal force in member AD. (10 marks) [CLOI-PLOT:C5]WPI:WK3 20 KN 10 KN 15 kN 2m 2 m 2 m Figure Q2
